GE IC697BEM731Z - Z Series BUS Controller with 1 Channel, Programmable Logic Controller
2025-02-05 BY
IN Industry trends

IC697BEM731Z|Modules are mainly used to connect to other modules

Brand GE Fanuc
Series Genius bus I/O
Part number IC697BEM731
Operating voltage 5.0 V DC
The backplane current is 1.3 amps
Product Type Bus controller module
Built-in port one (1) Bus Controller channel; One (1) handheld terminal port
Data rate 153.5Kbaud standard/extended, 76.8Kbaud or 38.4Kbaud
Bus cable Belden 9182 cable
Cable range 2000-7500 feet, depending on configured data rate
Bus terminal 75, 150 ohm resistance (electrical bus cable ends)
Maximum number of devices 30 devices/channels

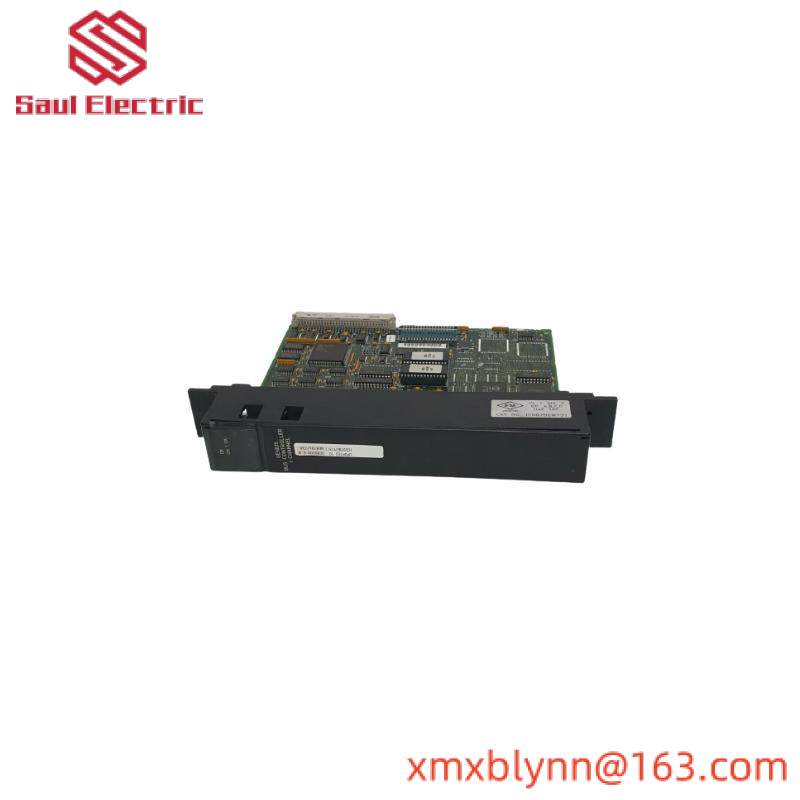

GE IC697BEM731Z - Z Series BUS Controller with 1 Channel, Programmable Logic Controller

The IC697BEM731 is a Genius bus controller module that is part of the GE Fanuc Series 90-70 series Programmable Logic Controllers (PLCS). The module is primarily used to connect up to thirty (30) devices and transfer data by passing tokens between all configured devices on the same bus.

The IC697BEM731 has one (1) channel for connecting to devices residing on the same bus, and one (1) handheld monitor (HHM) port for downloading the configuration to the module using the MS DOS or Windows programming software Configurator feature. When IC697BEM731 was delivered, it did not have a defined bus address. The configuration software sets the default address to 153.6 Kbaud standard and the bus address to 31. This default address can be modified by downloading the valid configuration to the CPU. When configured as 2000 Kbaud (standard), the maximum allowable distance of the communication bus is 153.6 feet; 3500 feet when configured at 153.6 KBaud (extended); 4,500 feet at 76.8 KBaud configuration and 7,500 feet at 38.4 KBaud configuration. All devices residing on the same bus or network must be configured with the same baud rate, otherwise communication cannot be established or you may experience erratic communication.

The physical communication cables used to establish the network are Belden 9182 type cables with GE catalog number IC660BLC001, 15 inches, number 3 and IC660BLC003, catalog number 36 inches, number 1. Bus terminator plugs must be installed at both ends of the bus, with catalog number IC660BLM506 150 ohm, number 4 and IC660BLM508 75 ohm, number 4 resistors.

The IC697BEM731 bus controller supports global data transfer between cpus via a Windows-based software configuration, and can be extended with the IC697 PLC alert system to report timestamp failures on processor data tables. The rear end of the bus controller module has a handheld monitoring port for connecting the handheld monitoring device and a connector for establishing the IC66 bus connection. The IC697BEM731 bus controller is configured with Windows or MS-DOs-based configurator functionality. By default, the Windows-based configurator feature sets the baud rate to 153.5 kilobit and the serial bus address to 31. Other baud rates and serial bus addresses can be assigned through the configurator function. The IC697BEM731 bus controller performs self-diagnosis at installation and has LED indicators for display and communication status updates.
2025-02-05 BY
IN Industry trends

IC695RMX128|PACSystems RX3i Redundant memory switch module

Brand GE Fanuc
Series RX3i PacSystem
Manufacturer Emerson Automation
Part number IC695RMX128
Part number IC695RMX128
Type Redundant memory module
Type Redundant switching memory module
The packet size is dynamic and controlled by RMC128/RMX228
User Memory 128 MB SDRAM memory
User Memory 128 MB SDRAM memory
Communication single mode optical fiber LC type

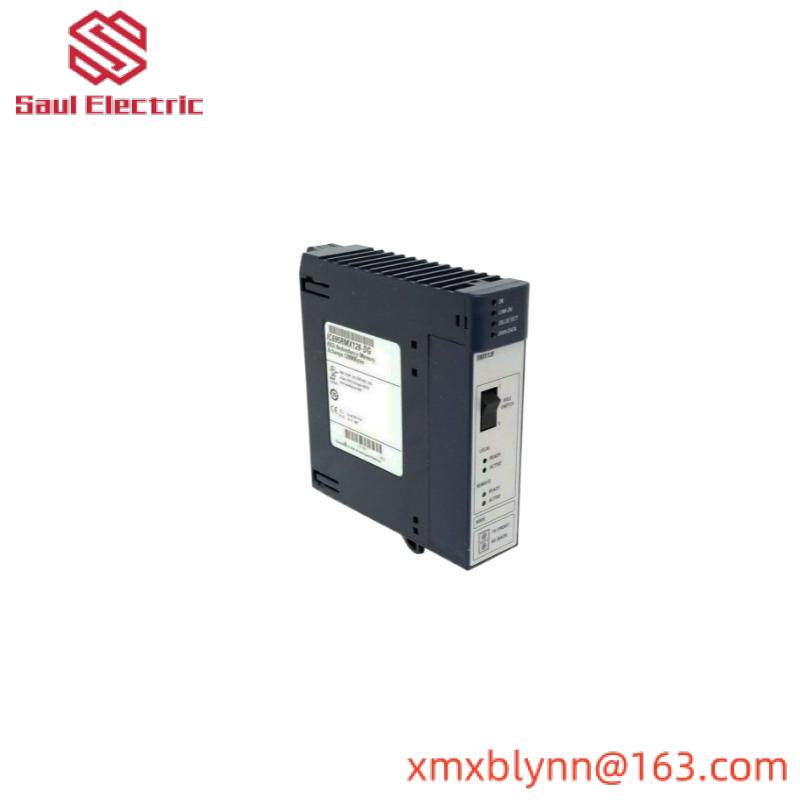

GE IC695RMX128-DG RX3i Redundancy Memory Xchange Module

The IC695RMX128 is a PACSystems RX3i redundant memory switch module. The main function of this module is to act as a single node on a reflected memory topology, or as a dedicated memory module for redundant RX3i CPU pairs. When used in a redundant CPU configuration, IC695RMX128 reflects the contents of IC695CMX128. With reflective memory linking, any update on one node is reflected and updated to all other nodes connected to the same network. The connection is established through a fiber optic network and supports connections of up to 256 nodes. The module comes with 128 MB of reflected memory, has a fiber optic power supply requiring LC type connectors and is designed to achieve transfer speeds of up to 2.12 Gbaud. The module operates on 580 mA@3.3VDC and 220 MA@5VDC power supplies. The IC695RMX128 is intended for redundant systems and cannot be used to perform general-purpose memory Xchange functions. In addition, a complete communication path must be established to complete the in-memory Xchange network. The complete communication path consists of a primary RMX unit and a corresponding secondary RMX unit. Two (2) high-speed fiber optic cables must be connected to the RMX pair and must form a 2-node ring. Because a dedicated RMX module must be used for redundant controller configuration, any redundant controller design does not have to use other RMX or reflective Nides. The configuration of RMX nodes is done through programming software rather than through jumper or DIP switch Settings. This ensures centralized modification of modules and minimizes hardware outages.

The IC695RMX128 memory module is a redundant memory module in GE Fanuc Automation’s RX3i PACSystems family. This module is particularly suitable for situations where there is a hot standby CPU redundancy system, where the second CPU acts as a backup device to the primary CPU, and there is a continuous data transfer between the two devices. The module runs on this reflective network and acts as a link between the two cpus. When this link is inactive or not currently in use, it is the same as the main module (that is, the IC695CMX128 module). GE Fanuc Automation IC695RMX128 Redundant memory module provides data sharing between different PCS and computing devices connected via a high-speed fiber optic network. This module has network error detection function. GE Fanuc Automation IC695RMX128 Redundant memory modules can be connected to other devices via fiber optic cables in Daisy chain rings. Transfers are performed from one node to another until they reach the final receiver. The module comes with 128 KB of reflected memory and a high-speed and easy-to-use 2.12 GBaud fiber network. The module occupies a slot in the RX3i rack. GE Fanuc Automation IC695RMX128 Redundant memory replacement module with zirconium ceramic ferrule with a maximum insertion loss rating of 0.35 dB and return loss. The input power of the module is 580 mah at 3.3 volts DC and 220 mah at 5 volts DC. The module can be plugged in easily and the system power is still on. This insertion mode is called jot insert and is suitable for some parts of the RX3i PacSystems family.

GE Fanuc IC695ETM001EJ Programmable Automation Controller
2025-02-05 BY
IN Industry trends

IC695ETM001|Ethernet transmitter module

Brand GE/Emerson
Series RX3i PacSystem
Part number IC695ETM001
Product Type Ethernet interface module
Compatibility PACSystems RX3i
Ethernet port 2 10/100 Mbps
Serial: RS-232 Yes
Serial data rate 1200 bps to 115200 bps
Hot swap Yes
Automatic sensing port Yes
Ethernet processor speed of 200 MHZ
Non-volatile memory Yes – Allows Ethernet nodes to be daisy-chain-connected
GE Fanuc IC695ETM001EJ Programmable Automation Controller

The IC695ETM001 is a PACSystem Rx31 module manufactured by GE and recently acquired by Emerson. The IC695ETM001 is a two (2) port Ethernet transmitter module that supports Ethernet connectivity, 10/100 Mbps transfer rates and auto-negotiation.

The IC695ETM001 is a single slot module that fits into the RX3i slot. It enables PACSystem to communicate with other controller platforms, such as the 90 Series and VersaMax controllers. The module is capable of implementing the Service Request Transfer Protocol (SRTP), Modbus TCP, and Ethernet Global Data (EGD) protocols on the Layer 4 TCP/IP (Internet) stack.

The Ethernet transmitter module supports periodic data exchange over Ethernet global data, and implements EGD commands to read and write to the controller. It also supports TCP/IP services using Serial Real-time Transport Protocol (SRTP) and SRTP channels, and is able to act as both a MODBUS TCP server and a MODBUS TCP client. It has an embedded switch that can be configured for auto-negotiation, sensing, speed, and cross detection. The module can also be used for time synchronization with the SNTP time server over Ethernet TCP/IP.

The IC695ETM001 has an Ethernet processor speed of 200 MHz. It comes with LED status indicators such as Ethernet OK, LAN OK, Log Empty, single port and speed LED status indicators.

When installing the IC695ETM001, the compatible backplane is the IC695CHS007, CHS012, or CHS016. It is compatible with any other PACSystem RX3i module except the CPE400. It is best installed on an unpowered RX3i backplane, but supports insertion when powered on and even when the processor is in RUN mode. This is also known as the hot swap function. To enable hot swap, firmware version 2.51 must be installed.

An RS-232 serial port is also available on the IC695ETM001 module, supporting data rates from 1200 bps to 115200 bps. The module’s built-in Station Manager functionality is accessible via serial and Ethernet connections and provides monitoring access. The services provided through Station Manager include commands for polling and controlling the station, for monitoring access to statistics, logs, and configuration parameters, and for password security. The IC695ETM001 module can be used to synchronize time stamps of EGD exchanges over the SNTP protocol. The IC695ETM001 module features PLC configuration and programming capabilities, regular data exchange via EGD, TCP/IP communication via SRTP, and diagnostic and site management tools. The IC695ETM001 module can be installed in any empty RX3i slot. The IC695ETM001 module supports hot swap. The module firmware can be upgraded on-site through software tools provided by GE Fanuc.

General Electric IC695CPU320 CF - Industrial Control Processor, for Advanced Automation Solutions
2025-02-05 BY
IN Industry trends

IC695CPU320-CF|PACSystem RX3i processor module

Brand GE Fanuc
Series RX3i PacSystem
Part number IC695CPU320
Product Type CPU module
Compatibility PACSystems RX3i
Microprocessor Celeron M
Clock speed 1.0 gigahertz
Ram 64 megabytes
NVRAM 64 megabytes
Serial port 2
Maximum number of program blocks 512
Maximum block size 128 KB
General Electric IC695CPU320 CF - Industrial Control Processor, for Advanced Automation Solutions

The IC695CPU320 is a GE Fanuc/Emerson Automation controller module. The module belongs to the PACSystems RX3i controller platform. The controller can be used for efficient control of industrial machines and processes. It enables high-speed data transfer through Peripheral Component Interconnect (PCI) slots and supports serial backplanes for migration of series 90-30 I/O systems.

The IC695CPU320 has two (2) built-in communication ports that support RS232 and RS485 communication standards. These communication ports use the 90 Series Protocol (SNP) slave station mode to communicate with programming workstations, human machine interfaces (HMI), and supervisory control and data acquisition (SCADA) systems. The controller can be installed in the Rx3i 12 backplane of slot IC695CHS012 or the Rx3i 16 backplane of slot IC695CHS016.

The IC695CPU320 has an internal Celeron M processor with a processing speed of 1GHz. It contains 65 MB of user memory, the contents of which are reserved by the Lithium Smart Battery Series 90-30 auxiliary battery modules with directory numbers IC695ACC302 and IC693ACC302 respectively. In addition, it has 64 MB of non-volatile flash user memory. In addition, these user stores support the reallocation of custom sizes of data and program stores. It supports up to 512 blocks, where the maximum size of a single block is 128 KB.

The IC695CPU320 supports most 90-30 series PLC I/O modules. This feature provides flexibility and is particularly useful and beneficial when upgrading the legacy 90-30 series to a modern PACSystems RX3i controller platform. This allows for a phased migration, in which the controllers and logic of the existing 90-30 PLCS are first migrated, followed by the I/O modules. PACSystem RX3i supports firmware modification.

Various accessories can be ordered for the IC695CPU320 module, Includes RS-232 cable (such as IC200CBL001 cable), smart lithium battery (such as IC695ACC302 battery), GE series 90-30 auxiliary battery module (such as IC693ACC302 module), rated voltage 120 to 240 volts AC, 125 Volt direct current and standard power supply of 40 watts. The GE Fanuc IC695CPU320 module is capable of executing 0.047 Boolean instructions in 1000 milliseconds. The module supports 512 blocks. The maximum block size is 128 KB. Two embedded communication ports are provided on the module, namely RS-485 and RS-232 ports. Supported serial protocols include SNP, Serial I/O, and Modbus RTU slave protocols.

The IC695CPU320 module uses the SNP slave protocol to communicate with the programmer and HMI over a serial port. The module communicates with the Smart Options module and I/O via a dual backplane bus. Environmental specifications include an operating temperature range of 0 to 60 degrees Celsius. The IC695CPU320 module supports both the serial backplane bus and the RX3i backplane bus, which absorbs 1 amp of 3.3 volts DC from the backplane and 1.2 amp of 5 volts DC from the backplane. Six leds are provided on the front panel for updating module status.

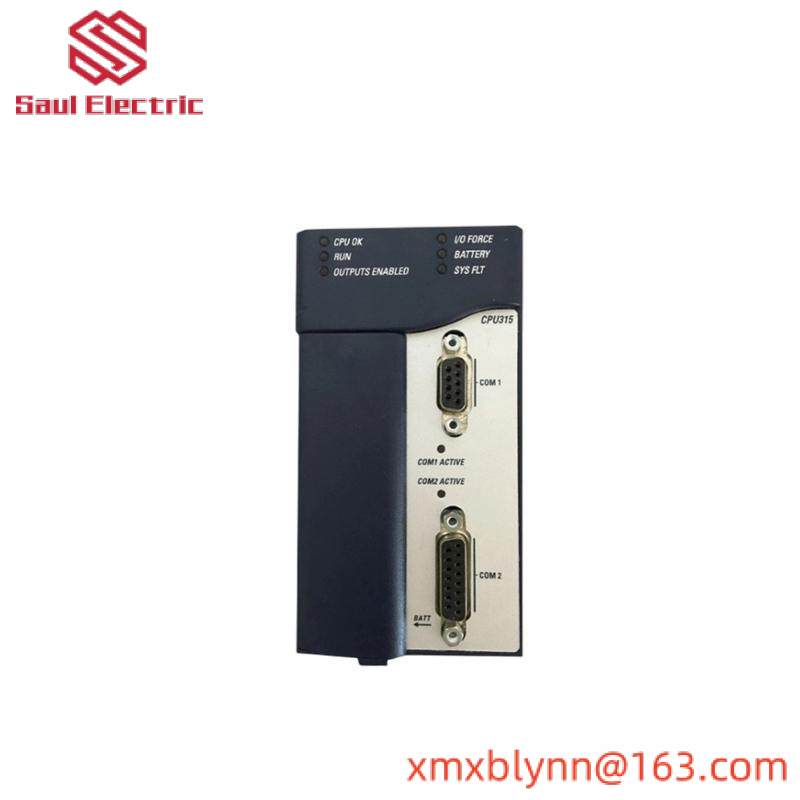

GE IC695CPU315 - High Performance CPU Control Module
2025-02-05 BY
IN Industry trends

IC695CPU315|CPU module for RX3i PACSystem platform

Brand GE Fanuc
Series RX3i PacSystem
Part number IC695CPU315
Product Type CPU module
Compatibility PACSystems RX3i
Microprocessor Celeron M
Clock speed 1.0 gigahertz
Ram 20 megabytes
Serial port 2
NVRAM 20 megabytes
Block 512
GE IC695CPU315 - High Performance CPU Control Module

The GE Fanuc IC695CPU315 CPU is an RX3i PacSystems 1.0 GHz Celeron M CPU with 20 MB of user memory. Accessories that can be ordered with the CPU include the IC695ACC302 intelligent auxiliary battery, the IC693ACC302 ordinary auxiliary battery and the IC690RBT001 rechargeable battery. CPU modules can only use GEIP-approved auxiliary battery packs. In addition to the battery-powered RAM, the module also includes 20 MB of NVRAM. The IC695CPU315 CPU reserves 32 KB of memory for discrete I/O and 32 KB of memory for analog I/O. Up to 512 blocks are supported, each 128 KB in size. The CPU module supports high-speed serial and RX3i PCU bus. The IC695CPU315 CPU complies with the PCI standard version 2.2.

Two integrated serial ports are provided on the IC695CPU315 CPU module. One port supports RS-232 communication and the other supports RS-485 communication. Three serial protocols are supported, including serial I/O, Modbus RTU slave, and SNP. The module has a nominal current consumption of 1.2 amps at 5 volts DC and 1 amp at 3.3 volts DC. Operating temperature range is 32 to 140 degrees Fahrenheit. The internal clock has a rated peak shift of 2 seconds per day. The maximum internal timing accuracy is 0.01%. The IC695CPU315 CPU supports automatically positioned symbolic variables that allow any amount of user memory to be used. The IC695CPU315 CPU supports most GE series 90-30 modules and expansion racks. CPU firmware can be upgraded onsite. The IC695CPU315 CPU complies with EU RoHS Directive 2002/95/EC and related exemptions. The application of the IC695CPU315 CPU includes real-time control of application processes and machines.

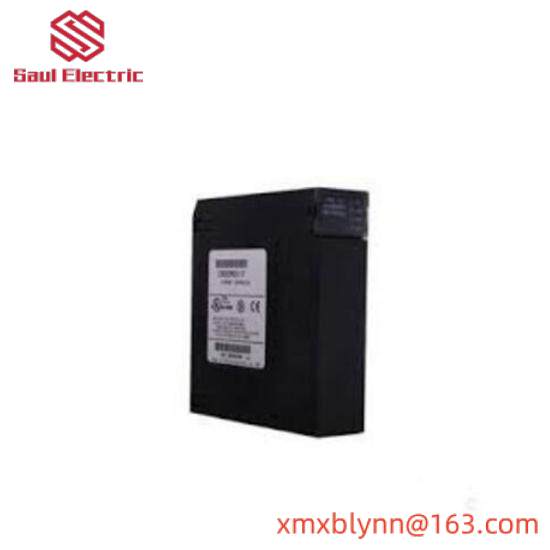

GE IC695CPE310-ABAH: Control Engineered Excellence, for Industrial Automation Needs
2025-02-05 BY
IN Industry trends

IC695CPE310|PACSystems RX3i mid-range controller module

Brand GE Fanuc
Series PACSy System RX3i
Manufacturer Emerson Automation
Part number IC695CPE310
Description RX3i Mid-range controller
Description RX3i processor
Communication port one (1) Ethernet; Two (2) serial ports
Number of slots 2
User logic memory IC695CPE310 has 10 MB of user memory.
Number of local racks 8
Discrete I/O memory 32 km
Program storage 10 MB of user memory
GE IC695CPE310-ABAH: Control Engineered Excellence, for Industrial Automation Needs

The IC695CPE310 is a central processing unit (CPU) module in the PACsystem RX3i product category. CPU is also called controller or processor, its main function is to provide logical execution, calculation and communication functions to the system. Specific to the IC695CPE310, this CPU is built with a 1.1GHz microprocessor speed and a Boolean logic execution speed of 0.72 ms/k. It comes with multiple communication interfaces, such as two (2) serial ports, consisting of one (1) RS232 and one (1) RS485 port and one (1) Ethernet communication interface. The IC695CPE310 can accommodate up to 32K bits of discrete input and output signals, using %I and %Q as references in programs, and 32K words of analog input and output capacity. In addition to this I/O memory capability, the IC695CPE310 comes with a battery-powered memory with a capacity of 10 MB. The IC695CPE310 supports multiple communication protocols. For Ethernet ports, the supported protocol is SRTP with data transfer rate of 10/100 Mbaud and automatic negotiation function. Serial interfaces, on the other hand, support SNP, serial I/O, Modbus Slave, and Modbus Master protocols. Other communication options available for this CPU include serial, Genius, reflected memory using Control Memory Exchange (CMX) modules, and Ethernet, The controller supports fieldbuses including PROFINET, EGD, Modbus TCP server and client, Genius, Profibus DP, and Ethernet. This CPU is downloaded with user programs and configurations designed using the Proficy Machine Edition Logic Developer Machine Edition 7.0 SIM 3 or later software package.

The IC695CPE310 RX3i CPU module is a central processing unit manufactured by GE Fanuc. It is based on state-of-the-art processors with a high level of performance and fast computing speed. It can manage up to 32K of inputs and outputs at once. It is compatible with multiple IEC languages as well as the C programming language for flexible programming. The IC695CPE310 RX3i CPU module provides hot swap and advanced diagnostics to provide solutions for complex applications. It has a battery-powered real-time clock and dynamic data backup. The USB-A 2.0 main port of the CPU module can be used to configure applications and download application data to A USB flash drive or smartphone. The IC695CPE310 RX3i CPU supports a maximum of eight local racks. It ensures maximum data storage facilities while reducing the need for external hardware. It also has a built-in RJ-45 Ethernet port and a 2-terminal converter. This rack-based Ethernet interface provides a full set of Ethernet capabilities and up to 2 programmer connections. The IC695CPE310 CPU meets the requirements of EC RoHS Directive 2002/95/EC and can meet industry standards. It offers two serial ports, namely RS-232 and RS-485 ports. Users can switch between CPU310 and CPE310 devices without upgrading traditional PME software. Pin number 5 of the RS-232 port does not provide 5 volts of power. It comes with 10 MB of non-volatile flash memory that can hold data indefinitely without losing the integrity of the data. The module can be used in a variety of applications, such as automotive, discrete manufacturing, chemical and industrial steam applications.

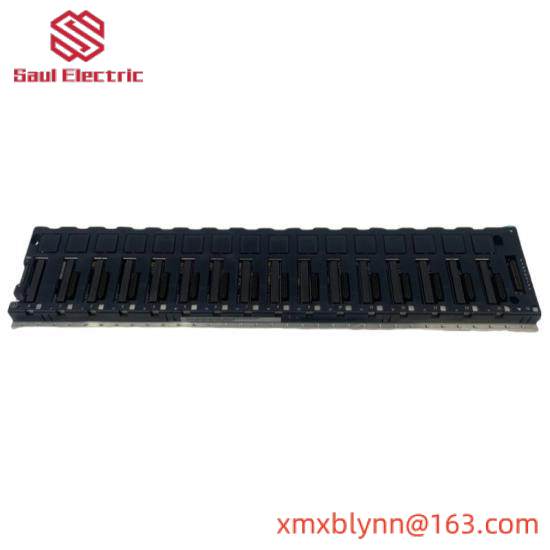

GE FANUC IC695CHS016G - High Performance Compact Safety Module, 200 Characters or Less
2025-02-05 BY
IN Industry trends

IC695CHSO16-DR|A PACSystem RX3i universal backplane

Brand GE Fanuc
Series PACSy System RX3i
Manufacturer Emerson Automation
Part number IC695CHS016
Product Description Universal backplane
Compatibility RX3i package system, 90-30 series I/O, optional module
Supports modules RX3i and series 90-30 I/O and optional modules
Mounting rack
Number of slots 16 (16)
Type universal backplane
The rated current is 600 mA at 3.3 VDC and 240 mA at 5 VDC.
GE FANUC IC695CHS016G - High Performance Compact Safety Module, 200 Characters or Less

The IC695CHS016 is a sixteen (16) slot universal backplane that is part of the PACsystem RX3i Programmable Automation Controller (PAC) family. This Emerson Automation backplane is designed to host the universal controller and I/O base modules, and integrates support for Peripheral component Interconnect (PCI) and high-speed serial bus to support RX3i modules as well as the traditional 90-30 series PLC family. The IC695CHS016 is 23.7 (W) x 5.57 (H) x 5.80 (D) or 601.98 (W) x 141.5 (H) x 147.32 (D)) and consumes 600 mA@3.3 VDC and 240 mA@5 VDC, Supplied by RX3i power supply. The backboard also supports hot-swappable modules, which helps improve system availability and ease of maintenance. The IC695CHS016 backplane may also be referred to by some as a chassis, rack, or baseboard. Regardless of the terminology used, the IC695CHS016 provides module connectivity to the backplane, power distribution, and host internal communication for each module. In addition, the backboard has the interfaces required for local expansion dock interconnections, allowing additional modules to be installed and connected to the same bus hosted by the IC695CHS016. The IC695CHS016 supports horizontal installation only. It comes with a terminal board for isolated 24 VDC input and isolated ground wiring. It is recommended to fasten it to a subpanel of a NEMA/UL Type 1 housing or a housing of at least IP20 rating (IEC60529). Minimum installation gaps must be followed to allow natural air cooling. The minimum mounting clearance required for all sides of the backplane is 102 mm or 4 inches.

The IC695CHS016 backplane is a universal backplane with 16 slots and a terminal board for isolating inputs. Manufactured by GE Fanuc, the backplane is part of the RX3i PACSystem series of industrial PLC assemblies. The backplane includes a connector for serial expansion and a ground point as well as a ground bar. The backplane is compatible with serial I/O components of the IC694 family, option modules, and PCI-based IC695 components. The IC695CHS016 backplane requires a minimum clearance of 102 mm (4 inches) for optimal performance and is designed for horizontal mounting. The IC695CHS016 universal backplane has an input voltage of +24 volts and an internal power of 240 mA (5 volts DC), while its internal power is 600 MA (3.3 volts DC). When installed in the housing, the backplane’s protection rating can range from IP 20 to IP 54, depending on where the backplane is used. The GE IC695CHS016 backplane is designed for mounting in a rack and is extremely reliable when installed correctly. In addition to the previously mentioned component types, the IC695CHS016 backplane also accepts components such as cpus, power modules, and serial expansion modules. It should be mentioned that some components require multiple slots, such as an AC power unit that requires 2 empty slots. This means that each individual slot can be configured for a specific module, and backplanes like the IC695CHS016 backplane are ideal platforms for high-performance systems involving many components. The backplane is made of durable material and its housing includes the following dimensions: 141.4 x 602 x 147.3 mm (5.5 x 23.7 x 5.8 inches).

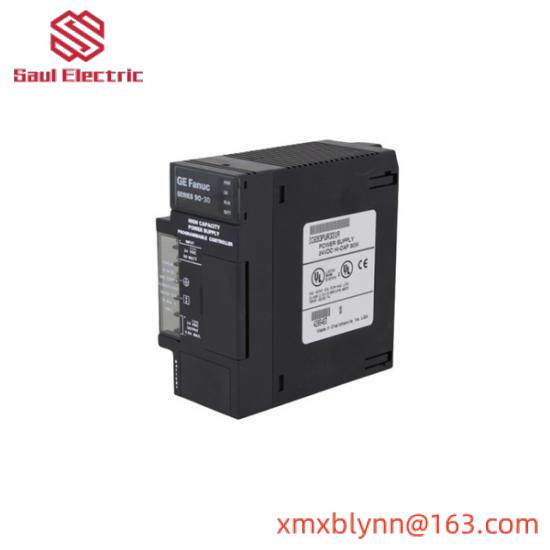

GE-FANUC IC693PWR322F POWER SUPPLY
2025-02-05 BY
IN Industry trends

IC693PWR322F|The load capacity of the power supply is 30 watts

Brand GE Fanuc
Series 90-30 pixels
Part number IC693PWR322
Hold time minimum 14 ms
Product type Standard power supply
The protocol supports RS485 interfaces
Nooooo. Output three (3)
Nominal rated voltage 24VDC / 48VDC
Input voltage range, DC start: 21 to 56 VDC Run: 18 to 56 VDC
Input power 90 VA with VAC input; 50 W with VDC input
Surge current 4A peak, Max 100 ms
GE-FANUC IC693PWR322F POWER SUPPLY

The GE Fanuc IC693PWR322 is a standard power supply. This power supply is a 30 watt power supply and requires an input power supply voltage of 24 to 48 VDC. This power supply has three (3) outputs, e.g. +5VDC; +24VDC isolation and +24VDC relay output.

Each power output has a specific function. The +5VDC output is used for the backplane power supply, while the +24 VDC relay power supply is used to provide the output power to the circuits on the 90-30 series relay modules. The +24VDC isolation is used by some modules connected to the 90-30 backplane and also provides external power to the 24VDC 90-30 input module.

The IC693PWR322 power supply has four (4) status indicators, such as PWR LED, OK LED, RUN LED and BATT LED. It also has one (1) RS485 communication port, which is a 9-pin sub-D connector. This port allows connection to programming workstations, GE Fanuc handheld programming, and other devices compatible with the RS485 communications standard.

The power module’s overvoltage protection is limited to 6.4 to 7 V (5VDC output) and 4 A overcurrent protection (for 5VDC output). This standard power supply has a hold time of 14 milliseconds.

The IC693PWR322 standard power supply is designed to withstand a maximum surge current of 4A for 100 milliseconds. Its input power is required to be 50 watts, maximum during full load use. The power supply also hosts a RAM battery. This ram battery is used to retain the RAM content. This battery can be replaced with an IC693ACC301.

The IC693PWR322 module comes with an input overvoltage protection device that is connected to pin 4 inside the terminal board. This pin is usually connected to pin 3 using a jumper tape. The IC693PWR322 module comes with a 15-pin D-female connector that can be easily accessed using a hinged door on the power supply front panel. It also provides a way to communicate with a PLC serial port, which can be used to connect a computer or handheld programmer device. The IC693PWR322 module has a peak surge current of 4 amps and a maximum of 100 milliseconds. The power device has a maximum crossing time of 10 milliseconds. The device has a holding time of 14 milliseconds. During installation, disconnect the module from the input power supply to avoid electrical damage.

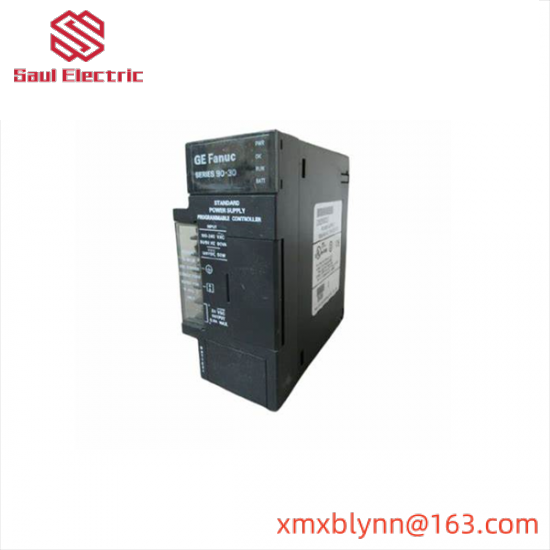

GE-FANUC IC693PWR321T Power Supply Module
2025-02-05 BY
IN Industry trends

IC693PWR321|Standard power module for the 90-30 platform

Part number IC693PWR321
Series 90-30 pixels
Brand GE Fanuc
Product type Standard power supply
The protocol supports RS485 interfaces
Nooooo. Output three (3)
Nominal rated voltage 120/240 VAC or 125 VDC
Input voltage range, AC 85 to 264 VAC
Input voltage range, DC 100 to 300 VDC
GE-FANUC IC693PWR321T Power Supply Module

The GE Fanuc IC693PWR321 is a power module of the 90-30 series. It supports the processing power of the Fanuc series 90-30 PLCS. It is located in the leftmost slot of the bottom plate. It is rated at 30 watts. It can be used with AC and DC power supplies. The voltage range of the input voltage source of the device must be between 85 and 264 volts AC or 100 and 300 volts DC. It offers different voltage outputs: 5 volts DC, 24 volts DC for powering the circuit, and isolated 24 volts DC for some modules to provide external power. It has a peak surge current of 4 amps for a maximum of 250 milliseconds. This programmable controller power device is robust and comes with a battery.

The IC693PWR321 module is fully compatible with any CPU model. The power module has passed the cULus and CE standards. It is designed to work in a Class 1 level 2 environment. The IC693PWR321 module has a power limiting function that immediately protects the hardware in the event of a direct short circuit. The power unit is equipped with 6 terminals for operator connections. It comes with enhanced diagnostics to keep track of all events and updates for the actor. As a protective measure, smart switching fuses are built into the power supply unit. For communication, the IC693PWR321 module is equipped with an RS-485 serial port. Serial ports can be used to connect different peripherals and cpus/computers.

The IC693PWR321 can be powered by AC or DC power. This power supply has an AC input voltage range of 85-264 VAC and a nominal value of 120-240VAC. For DC supply voltages, the acceptable voltage range is 100-300 VDC, with a nominal value of 125 VDC. Its input power requirements are 90 VA (AC input) and 50W (DC input). It can withstand A peak surge current of 4 A for a duration of 250 ms.

The IC693PWR321 output power capability includes 5 VDC and 24VDC relays made for a maximum of 15 watts; The 24VDC relay is up to 15 watts and the 24VDC isolation is up to 20 watts. The output voltage of this power supply is 5.0 VDC to 5.2 VDC, and the nominal value is 5.1 VDC. 24VDC to 28VDC for 24VDC relays; 21.5VDC to 28VDC, used to isolate 24VDC operations. It has overvoltage protection from 6.4VDC to 7VDC and overcurrent protection from 4A, with a maximum hold time of 20 ms.

The IC693PWR321 also has one (1) 9-pin sub-D connector RS485 compatible serial port. It comes with an internal fuse, GE catalog number 44A724627-109. This fuse may come from a third party supplier. Suitable replacement fuses are Bussman – 215-002 (GDC-2 or GCM-2) and Littlefuse – 239-002.

GE IC693PCM301 Programmable Co-Processor Module; Manufacturer: GE-FANUC
2025-02-05 BY
IN Industry trends

IC693PCM300R|Programmable coprocessor module (PCM) is a kind of high performance microcomputer

Brand GE Fanuc
Series Series 90-30
Part number IC693PCM300
Number of serial ports 2
CCM for support
ASCII/BASIC modules are supported
Hot swap is not supported
Number of leds 3
MegaBasic Interface function Supported
GE IC693PWR331D Power Supply - Advanced Energy Management Solution

The GE Fanuc IC693PCM300 Programmable Coprocessor module (PCM) is a solid-state microcomputer module used as a coprocessor in the GE-FANUC series 90-30 PLCS. Depending on the application being processed by the PLC, the PCM can be used as a communication coprocessor module (CCM) or ASCII/BASIC module (ABM). It comes with 2 serial ports that can be used as a connection point for communication coprocessor module functions or to run MegaBasic applications. Installing the GE Fanuc IC693PCM300 programmable coprocessor module is very simple, as it occupies only one slot in any 90-30 series baseboard, but precautions should be taken as it does not allow hot-swapable work.

Industrial computers, peripheral displays, process controllers and other devices can communicate with GE Fanuc series 90-30 PLCS by using the GE Fanuc IC693PCM300 programmable coprocessor module as an interface or communication gateway. The GE Fanuc IC693PCM300 programmable coprocessor module can edit, configure and adjust various MEGABASics for interface functions, such as data acquisition, data storage and retrieval, and real-time computing, to accommodate the monitoring and control of different application processes and machinery. Even after a power outage, user memory is retained on the module by using the internal lithium battery that came with the factory. There are 3 status leds on the module, including an OK LED indicating the status of the module and 2 user-configurable leds called User 1 and User 2. When the module is working properly, the OK LED will light up, when the module is not working, the OK LED will go off and blink during the power-on diagnosis.
