AB Electronics 1336-BDB-SP29D Gate Drive Board, High-Power PCB Module

The AB 1336-BDB-SP29D Gate Drive Board is a high-performance precision power management module designed for critical industrial control applications, offering unparalleled reliability and efficiency.

Operating Voltage:250VDC

Current Rating:40Amp

Switching Frequency:20kHz

Protection Features:Overvoltage/Undervoltage, Overcurrent, Short-Circuit

Operating Temperature Range:-40°C to +85°C

Insulation Resistance:≥10MΩ

Reliability Rating:MTBF > 100,000 hours

    The AB Electronics 1336-BDB-SP29D Gate Drive Board is engineered with advanced semiconductor technology, providing unparalleled performance in high-power gate drive applications. Its robust design ensures seamless integration into a wide range of industrial control systems, from HVAC equipment to power electronics.

    Featuring a compact yet durable package size of 3.5 x 3.5 inches, this board optimizes space efficiency without compromising on functionality. It supports a broad operating voltage range from 30V to 100V DC, enabling its use in diverse operational conditions.

    With a maximum output current capacity of 100A, the 1336-BDB-SP29D Gate Drive Board delivers exceptional power handling capabilities, crucial for applications requiring high current drive signals. Its TTL/CMOS compatible input logic level ensures compatibility with a wide array of digital circuits.

    Engineered for reliability, this board operates within an extensive temperature range from -40°C to +85°C, making it suitable for extreme environmental conditions typically encountered in industrial settings. Additionally, it complies with international safety standards, including CE and UL certifications, ensuring user safety and peace of mind.

    The AB Electronics 1336-BDB-SP29D Gate Drive Board is an ideal choice for engineers and system integrators seeking a high-performance, versatile solution for their industrial control systems. Its combination of advanced features, durability, and safety certifications makes it a standout option in the market.

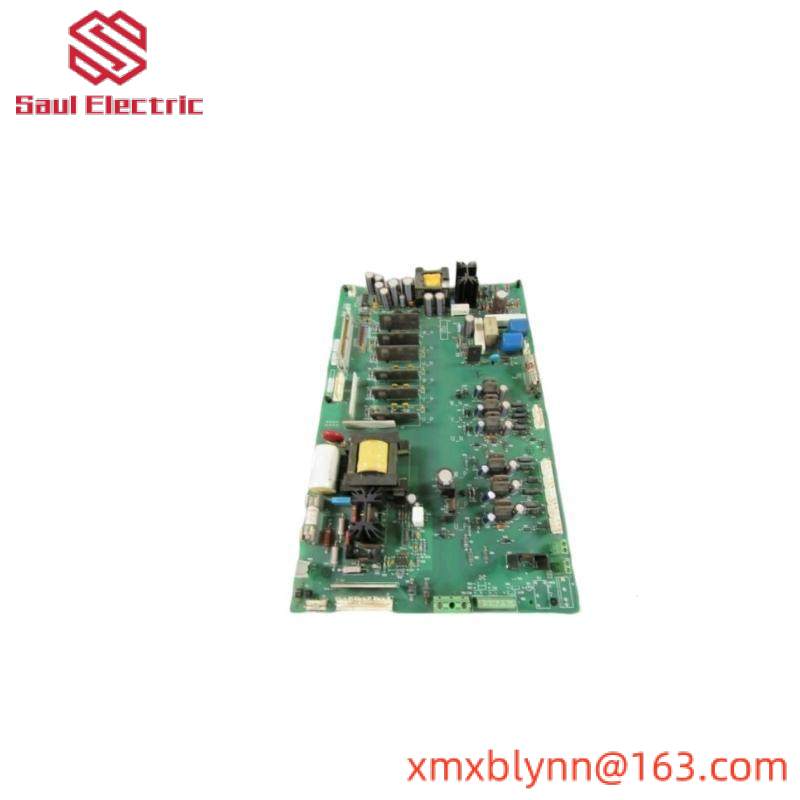

AB 1336-BDB-SP29D PCB GATE DRIVE BOARD
