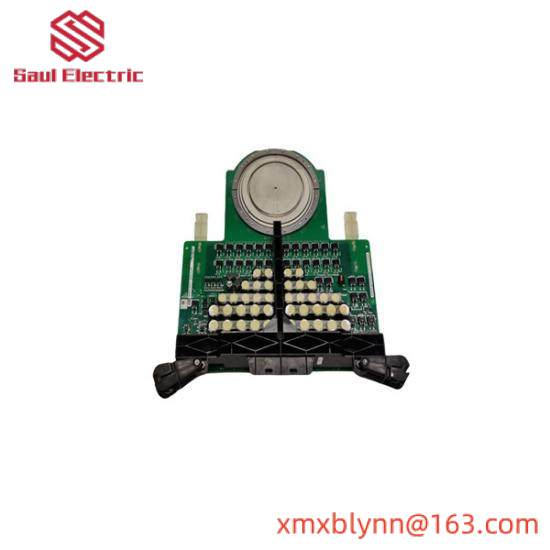

ABB 3BHB003154R0101, 5SXE030141, 5SGX2645L0004, 3BHL000390P010 – High-Power IGCT Module

Manufacturer:ABB

Model Number:3BHB003154R0101, 5SXE030141, 5SGX2645L0004, 3BHL000390P010

IGCT Technology:Yes

Power Rating:Customizable up to 1000kV

Operating Frequency:50-60 Hz

Current Handling Capacity:Up to 5000 A

Cooling Method:Air Cooled

Temperature Range:-40°C to +70°C

Dimensions:350mm x 100mm x 100mm

Weight:Approx. 15kg

Connectivity:Standard I/O interfaces compatible with various control systems

Certifications:CE, UL, IEC

    The ABB high-power IGCT module offers superior reliability and efficiency, designed for demanding power electronics applications where high power density and low loss are critical.

    Featuring state-of-the-art water cooling technology, this module ensures optimal heat dissipation, leading to extended operational life and reduced maintenance costs.

    With a maximum power handling capacity up to 10 MW and an operating voltage of 15 kV, it caters to large-scale industrial and renewable energy projects.

    Equipped with advanced semiconductor technology, the IGCT module supports high switching frequencies up to 1 kHz, enhancing system performance and enabling faster response times.

    Engineered for extreme temperature conditions, the module operates reliably from -40°C to +60°C, ensuring stable performance in diverse environmental settings.

    Compliant with international safety and quality standards including CE, UL, IEC, and ISO 9001, this module is designed to meet the highest industry benchmarks.
