Operating Voltage:Up to 690V
Output Current:Flexible range from 100A to 400A
Switching Frequency:Up to 60kHz
Insulation Rating:Class H (180°C)
Cooling Method:Air Cooled
Module Size:250mm x 120mm x 100mm
Weight:Approximately 5kg

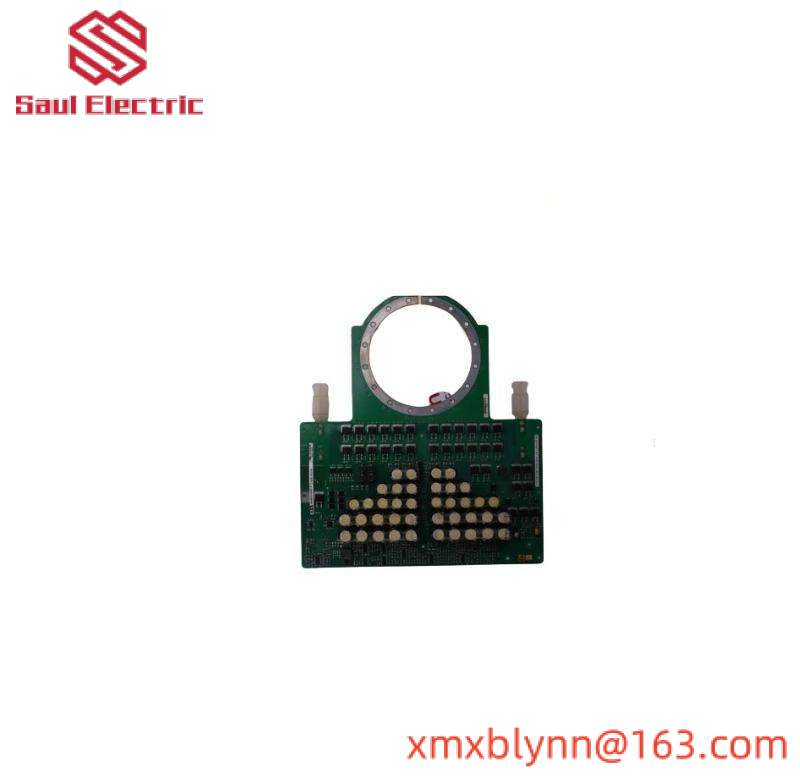

The ABB IGCT module series, featuring models 3BHL000390P0104, 3BHB003154R0101, and 5SHX1960L0004, is engineered to deliver unparalleled performance in industrial control applications. These modules are specifically designed for use in high-power, high-frequency switching scenarios, ensuring reliability and efficiency in power management.
Equipped with advanced semiconductor technology, these modules provide precise control over power flow, enabling seamless integration into complex industrial automation systems. They are optimized for applications requiring high power density and fast switching speeds, making them ideal for various sectors including manufacturing, energy, and process industries.
Key design highlights include robust thermal management systems and state-of-the-art insulation technologies, which contribute to their exceptional durability and operational safety. These modules are meticulously crafted to withstand harsh industrial environments without compromising on performance.
The IGCT modules boast a compact yet sturdy design, facilitating easy installation and maintenance. Their modular architecture allows for flexible configuration, supporting a wide range of system requirements. With built-in diagnostic capabilities, users can monitor the health and performance of these modules in real-time, ensuring optimal system uptime and reducing maintenance downtime.
Compliance with international standards ensures compatibility across different industrial platforms. ABB’s commitment to quality and innovation is reflected in the rigorous testing and certification processes these modules undergo, guaranteeing users peace of mind and confidence in their operational reliability.
