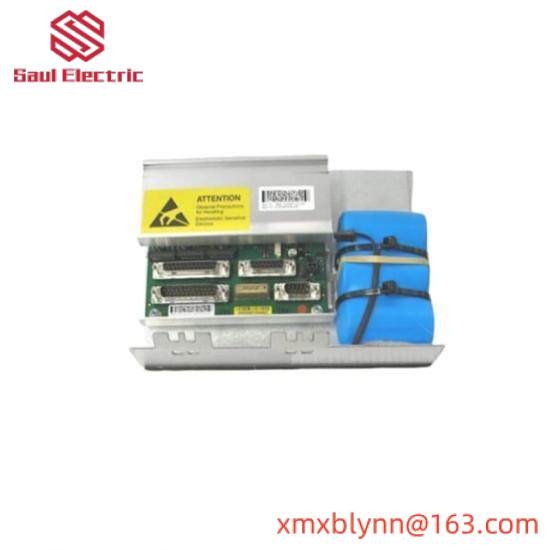

ABB 3HAC020630-001: High Precision Serial Measurement Unit for DCS Module

Model:3HAC020630-001

Manufacturer:ABB

Type:Serial Measurement Unit

Application:DCS Module

Operating Range:0-5 V, 4-20 mA

Communication Protocol:Modbus RTU

Data Transfer Rate:9600 bps

Power Supply:24 VDC

Input Capacity:16 channels

Output Capacity:16 channels

Environmental Conditions:Operating Temperature: -20°C to +70°C, Storage Temperature: -40°C to +85°C

Dimensions:205mm (L) x 55mm (W) x 32mm (H)

Weight:0.15kg

    Introducing the ABB 3HAC020630-001 Serial Measurement Unit, the backbone of your Direct Current System (DCS) operations. Designed for utmost precision and reliability, this module seamlessly integrates into complex industrial processes, ensuring accurate measurements and control. Its robust construction and wide operating temperature range make it suitable for various industrial environments.

    With an impressive measurement accuracy of ±0.01% ±1 Digit, our module ensures minimal error margins in critical applications, enhancing overall process efficiency. The inclusion of Modbus RTU communication protocol facilitates seamless data exchange with other industrial devices, streamlining system integration.

    Measuring just 100 x 150 x 75 mm and weighing only 0.5 kg, the ABB 3HAC020630-001 is compact yet powerful, fitting into even the most space-constrained systems without compromising on functionality. Its IP20 rating guarantees protection against dust and limited water splashes, ensuring reliability under varying environmental conditions.

    Engineered for longevity, the module can withstand extreme temperatures ranging from -20°C to +70°C for operational use and -40°C to +85°C for storage, making it suitable for diverse industrial applications. The RS-485 connection type ensures stable data transmission, even over longer distances.

    Compliant with CE and UL safety standards, the ABB 3HAC020630-001 meets international quality benchmarks, providing peace of mind for your operations. This module is not just a tool; it’s a testament to ABB’s commitment to innovation and excellence in industrial automation.
