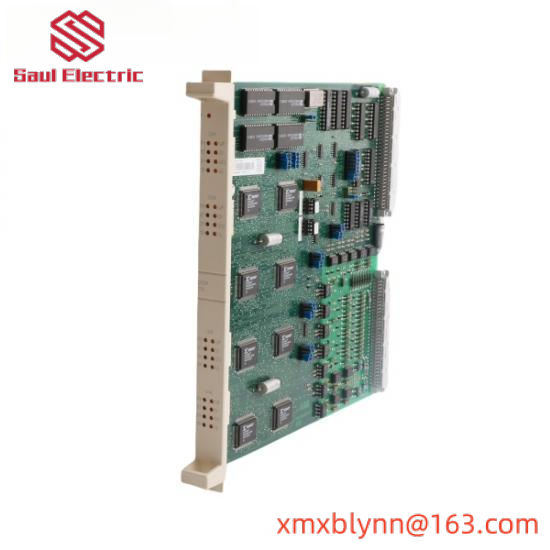

ABB DSDP170, 57160001-ADF Pulse Counting Module

Module Type:Pulse Counting Module

Model:DSDP170

Part Number:57160001-ADF

Operating Voltage:12-24V DC

Current Consumption:Max. 20mA

Counting Range:Up to 10^14 pulses

Accuracy:+/- 0.005%

Response Time:Less than 1ms

Temperature Range:-20°C to +70°C

Environmental Protection:IP20

Dimensions:125mm x 68mm x 32mm

Weight:180g

    The ABB DSDP170 57160001-ADF Pulse Counting Module is designed for precision pulse counting tasks in industrial environments, offering high-speed signal processing capabilities that enhance operational efficiency.

    Featuring a compact design that accommodates diverse signal types, this module supports TTL, CMOS, and open collector inputs, making it compatible with a wide range of industrial systems.

    With an operating temperature range from -25°C to +60°C, the DSDP170 is built for robust performance in varying environmental conditions, ensuring reliability in harsh industrial settings.

    Equipped with less than 2W of power consumption, this module optimizes energy usage, contributing to cost savings and sustainable operation.

    For seamless integration, the module offers RS485 communication with Modbus RTU protocol support, enabling easy connection to existing industrial networks. Additionally, it provides two sets of relay outputs for efficient data handling.
