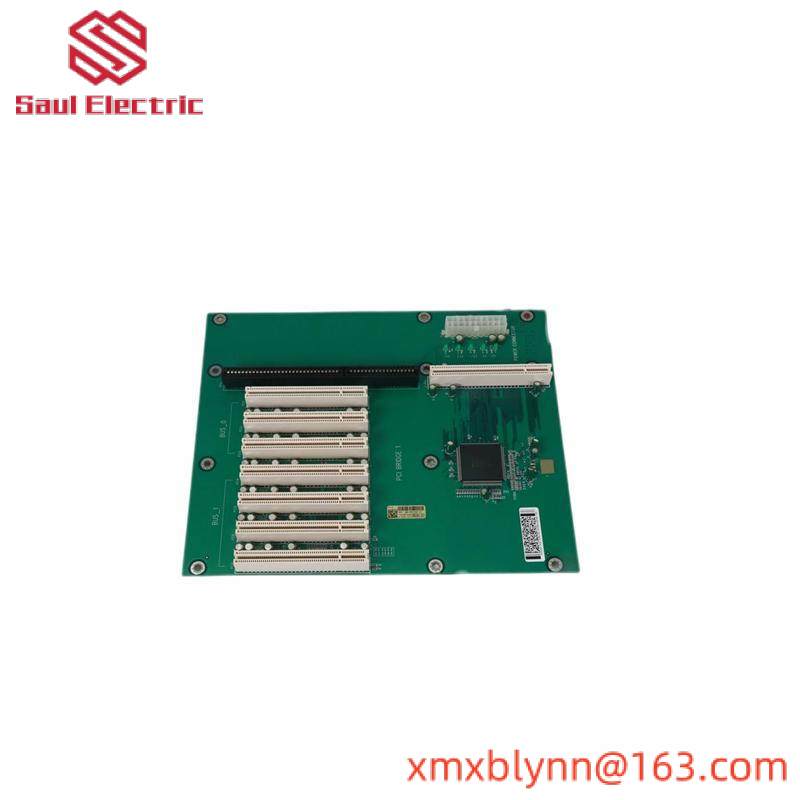

ABB DSQC541 Back Plane – High Performance Ethernet Communication Module

Manufacturer:ABB

Model:DSQC541

Type:Back Plane

Application Area:Industrials

Board Size:Compact

Power Consumption:Low

Communication Protocol:EtherCAT

Operating Temperature:-20°C to +70°C

Material:Robust Metal

Number of Inputs:16

Number of Outputs:16

I/O Configuration:Differential and Single-ended

Max Current per Channel:2A

    Experience enhanced system efficiency with the ABB DSQC541 Back Plane, a critical component in advanced control systems. This modular device facilitates seamless integration, ensuring smooth communication between control panels and industrial automation processes.

    Engineered for durability and reliability, the DSQC541 boasts a compact design measuring 255 x 141 x 34 mm, weighing just 0.25 kg, making it easy to install and maintain in any industrial setting.

    Equipped with 16 digital inputs and 16 digital outputs, this back plane offers versatile connectivity options. Its compatibility with RS-232, RS-485 interfaces ensures seamless data transfer, enhancing operational performance.

    Designed to withstand harsh environmental conditions, the DSQC541 operates within a temperature range of -20°C to +70°C and can handle humidity up to 95% non-condensing, ensuring dependable performance even in challenging environments.

    Innovative features and robust build quality make the ABB DSQC541 Back Plane an indispensable part of modern industrial automation systems, delivering unparalleled reliability and efficiency to streamline your operations.
