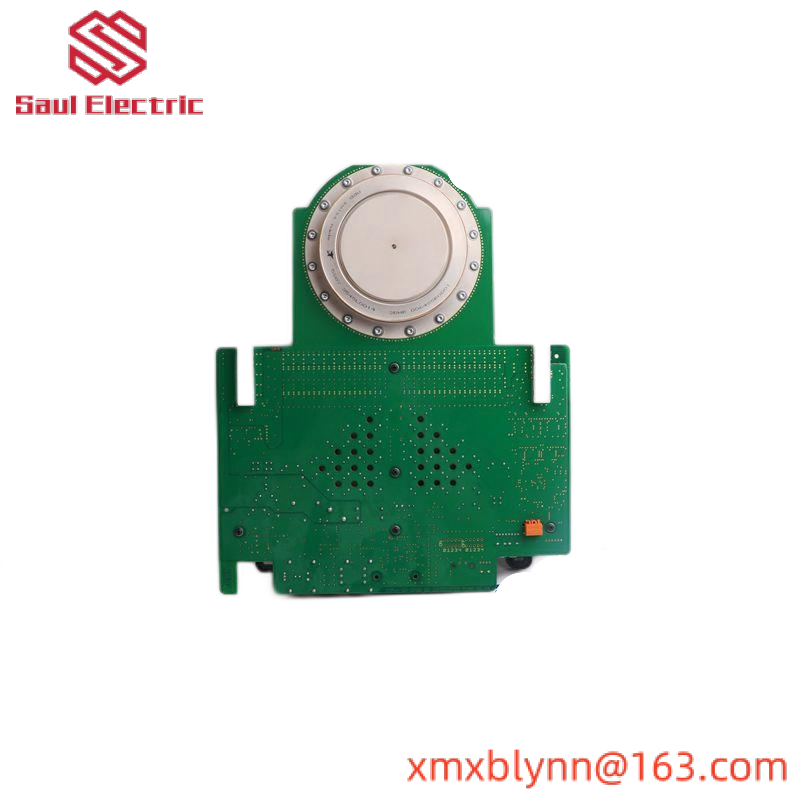

Manufacturer:ABB
Model:086349-002
Type:Measurement PCB Circuit Board
Series:MPRC
Dimensions (LxWxH):150mm x 100mm x 20mm
Net Weight:0.3kg
Operating Temperature Range:-20°C to +60°C
Input Voltage:DC 12V ±10%
Data Transmission Rate:Up to 1Mbps
Connectors:2x BNC connectors, 1x RS-485 connector
The ABB MPRC 086349-002 Measurement PCB Circuit Board is a critical element for enhancing the accuracy and efficiency of industrial automation processes. Its robust construction ensures durability in harsh environments, making it suitable for various manufacturing and process control applications.
Featuring a compact design with a footprint of 120mm x 100mm, this board is easily integrated into existing systems without compromising on functionality. It supports a wide operating temperature range from -40°C to +85°C, allowing for reliable performance across different geographical locations and industrial settings.
Equipped with two analog input ports and one digital output port, the board offers versatile connectivity options for interfacing with sensors and actuators. The ability to handle up to 1Mbps data rate ensures real-time data processing, crucial for dynamic control systems.
Built with industrial-grade FR4 material, the ABB MPRC 086349-002 is capable of withstanding high electrical stresses and environmental factors, guaranteeing a long service life. It operates efficiently within a voltage range of DC 5V to 36V, providing flexibility in power supply options.
Engineered for seamless integration with ABB PLC systems, this circuit board simplifies the setup and maintenance process, enhancing overall system reliability and reducing downtime. Its inclusion in an industrial automation network can significantly boost operational efficiency and productivity.
