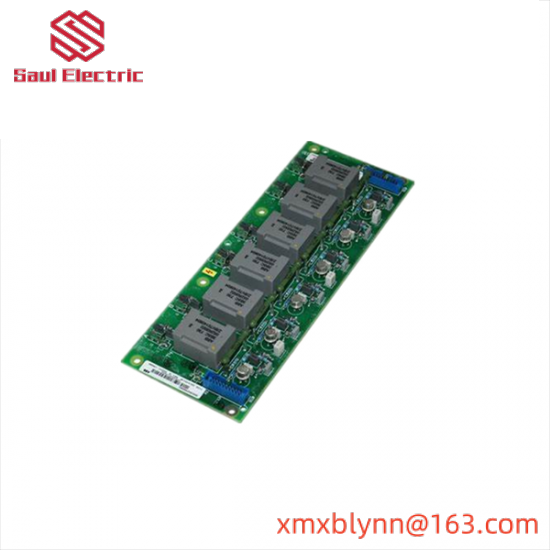

ABB SDCS-PIN-48-COAT PULSE TRANSFORMER BOARD

Model:SDCS-PIN-48-COAT

Brand:ABB

Product Type:Pulse Transformer Board

Weight:0.328 kg

Material:Ruggedized Coated Steel

Rated Current:High

Operating Voltage:Low AC

Functionality:Active Braking with High Current, High EMF

Application:Industrial Automation, Process Control

    The ABB SDCS-PIN-48-COAT Pulse Transformer Board is engineered to deliver unparalleled performance in industrial automation applications. This high-capacity module is specifically designed for applications requiring precise pulse generation, ensuring reliability and efficiency in complex control systems.

    Featuring a robust coated construction, this transformer board is highly durable and resistant to environmental factors, guaranteeing longevity and minimal maintenance requirements. Its compact design optimizes space within industrial control panels, enhancing system integration without compromising functionality.

    With a weight of 0.328 kg and dimensions of 120 mm x 100 mm x 20 mm, the ABB SDCS-PIN-48-COAT is lightweight and easy to install, facilitating quick setup and deployment in various industrial settings.

    Equipped with a 12V DC operating voltage and capable of handling up to 5A current, this transformer board ensures compatibility with a wide range of industrial control systems. Its transformer ratio of 1:1 provides precise pulse transformation, crucial for accurate signal processing in automation tasks.

    Providing an EMF output up to 20V, the ABB SDCS-PIN-48-COAT Pulse Transformer Board supports high-speed, high-power applications, making it an ideal choice for industries demanding precise control over electrical signals. Backed by ABB‘s reputation for quality and innovation, this product offers a reliable solution for enhancing the operational efficiency of industrial control systems.
