Model Type:SLC500
Model Number:1746-IN16
Manufacturer:Allen Bradley
Number of Channels:16
Input Voltage:24 VAC/DC Signal, 10 – 30 VAC, 10 – 30 VDC (Sink)
Off-State Input Voltage:3 VAC/VDC
Nominal Current:8 MA At 24 VAC/VDC
Off-State Current:1 MA
AC/DC Current Rating:Backplane: 85 MA
Isolation:Communication Circuits: 500 VDC, Backplane: 1500 VAC
Processor:SLC 500
Enclosure:Open Type
Mounting:Chassis
Temperature Rating:0 – 60 DEG C
Environmental Conditions:5 – 95% Non-Condensing Relative Humidity
Shock Resistance:30 G

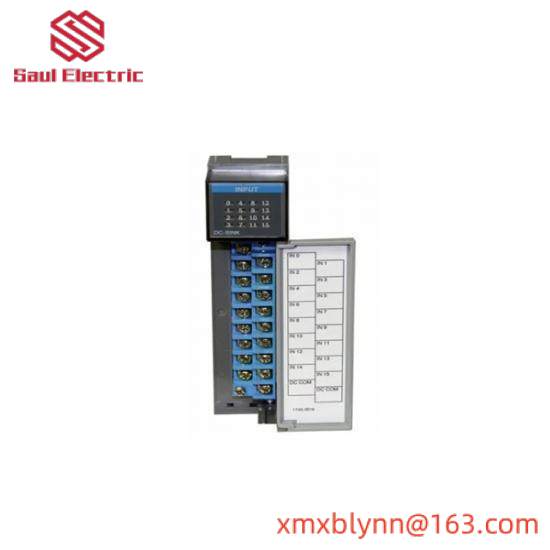

The Allen Bradley 1746-IN16 Digital AC Input Module is engineered for seamless integration into advanced industrial control systems, ensuring reliable and accurate signal conversion for optimal performance.
Featuring 16 channels capable of handling 24 VAC/DC or 10-30 VAC/DC signals (sink type), this module ensures precision in data acquisition and processing.
With an off-state input voltage of 3 VAC/VDC and nominal current of 8 mA at 24 VAC/VDC, it provides robust signal handling under varying conditions, making it suitable for harsh industrial environments.
The isolation specifications, including communication circuits isolated at 500 VDC and backplane at 1500 VAC, ensure high levels of safety and reliability, preventing potential short-circuits and voltage spikes.
The open type enclosure and chassis mounting design facilitate easy installation and maintenance, while its temperature rating from 0 to 60 DEG C ensures operational stability across diverse climate conditions.
Equipped with advanced Allen Bradley technology, this input module is optimized for efficient signal processing, contributing to enhanced system performance and productivity in manufacturing, automation, and process control applications.
