Number of Channels:4
Input Type:Common Mode Voltage Range: -20 To 20 V, Absolute Input Voltage: Plus/Minus 7.5 VDC or 7.5 VAC RMS (Maximum)
Input Range:-20 To 20 MA, Absolute Input Current: -30 To 30 MA (Maximum)
Voltage Rating:Overvoltage Protection: 7.5 VAC RMS, Input Range: -10 To 10 VDC – 1 LSB
Current Rating:Backplane Current Draw: 35 MA at 5 V, 85 MA at 24 V
Isolation:Backplane: 500 VDC, Enclosure: Open Type

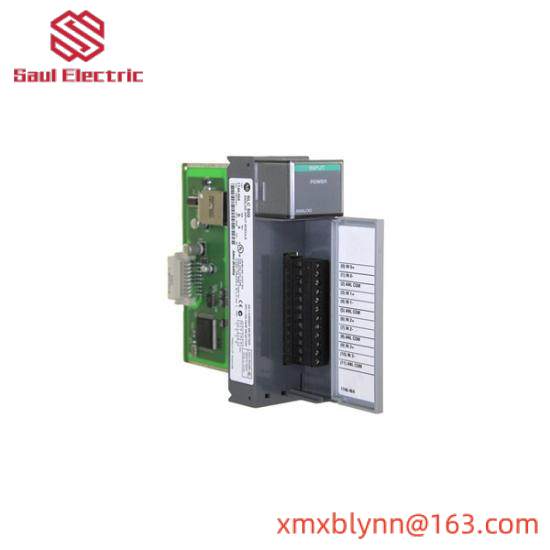

The Allen Bradley 1746-NI4/A Analog Input Module is specifically engineered for demanding industrial environments, ensuring reliability and precision in critical applications.
With its robust design, this module can handle common mode voltage ranges from -20 to 20 V, providing flexibility for a wide range of industrial needs.
Featuring 4 high-resolution channels, it enables accurate measurement and control, crucial for maintaining operational efficiency and quality standards.
The absolute input voltage capability of plus/minus 7.5 VDC or 7.5 VAC RMS ensures compatibility with various power sources, enhancing the module’s versatility.
The 1 LSB input range ensures minimal error margins, making it ideal for applications requiring high accuracy and precision.
The backplane current draw at 5 V is 35 MA, and at 24 V, it’s 85 MA, providing sufficient power without overloading the system. The open-type enclosure facilitates easy installation and maintenance.
