Number of Channels:8
Channel Type:Analog
Input Range:-20V to +20V
Common Mode Voltage Range:-20V to +20V
Absolute Input Voltage:+/-7.5V DC or +/-7.5V AC RMS
Input Current Range:-30mA to +30mA
Output Voltage Range:0V to +21.5V
Operating Voltage:24V DC ±10%
Minimum Output Current:300mA
Current Output Ranges:4-20mA, 0-20mA, 0-21mA, 0-21.5mA
Backplane Current Draw:120mA at 5VDC, 250mA at 24VDC (with J4 jumper set to rack), 0mA at 24VDC (with J4 jumper set to EXT)
Isolation:Backplane: 500VDC, Enclosure: Open Type
Display:Status LED
Connection Cables:24-14 AWG
Mounting:Chassis
Temperature Rating:0-60°C
Environmental Conditions:5-95% non-condensing relative humidity
Shock Resistance:30G

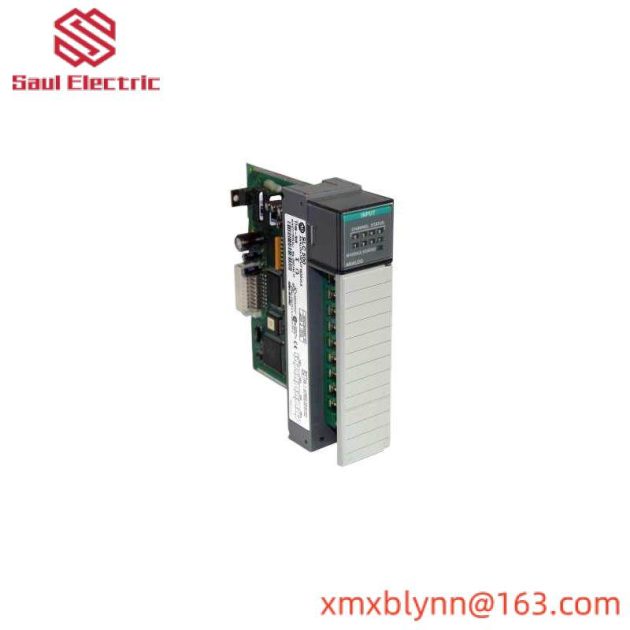

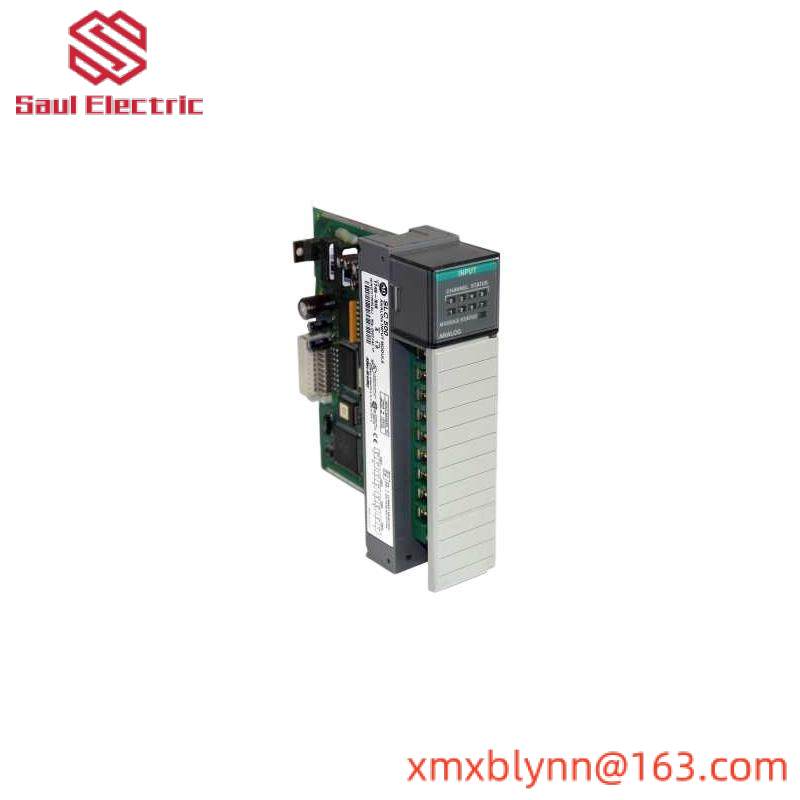

The Allen Bradley 1746-NI8I is a robust, high-performance module designed for industrial automation applications, specifically tailored for the acquisition of precise analog signals.
With its eight high-resolution analog inputs, this module ensures reliable data collection for critical process monitoring and control systems, enabling accurate feedback and response.
Featuring an open-type enclosure and backplane current draw capability, it integrates seamlessly into various industrial setups, offering enhanced durability and flexibility.
Equipped with overvoltage protection, the module safeguards against electrical spikes, ensuring stable operation even in harsh environments.
Compliant with international standards for environmental conditions and shock resistance, this module is suitable for a wide range of industrial settings, guaranteeing reliability and longevity.
Ideal for applications requiring high precision and robustness, the Allen Bradley 1746-NI8I is a cost-effective solution for enhancing operational efficiency and accuracy in industrial automation.
