Model Type:Analog Input & Output
Manufacturer:Allen Bradley
Model Number:1746-NIO4V
Number of Channels:2 Inputs, 2 Outputs
Input Range:-20 To 20 V Common Mode Voltage
Absolute Input Voltage:Plus/Minus 7.5 VDC or 7.5 VAC RMS
Input Current Range:-30 To 30 MA Absolute
Output Range:-10 To 10 V, 1 LSB
Voltage Rating:Overvoltage Protection: 7.5 VAC RMS
Input Current:-10 To 10 VDC, 1 LSB
Current Rating:Backplane: 55 MA
Isolation:Backplane: 500 VDC, Enclosure: Open Type
Display:Status LED
Connection Cables:24 – 14 AWG
Mounting:Chassis
Operating Voltage:24 VDC Plus/Minus 10%
Minimum Output Current:300 MA
Output Ranges:4 – 20 MA, 0 – 20 MA, 0 – 21 MA, 0 – 21.5 MA

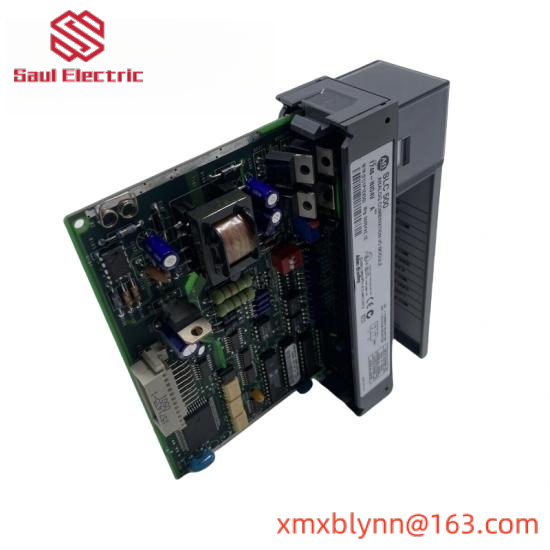

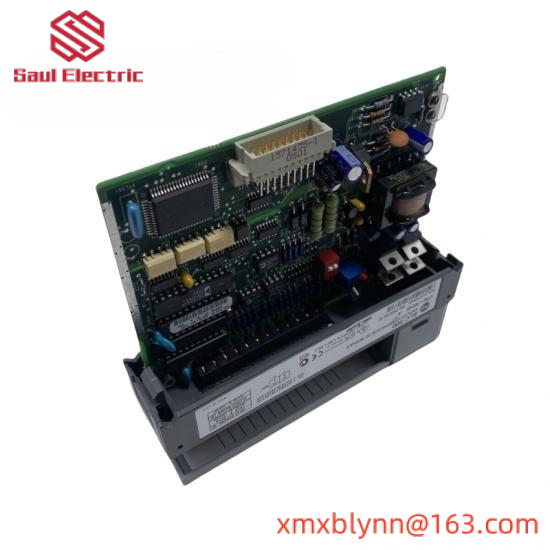

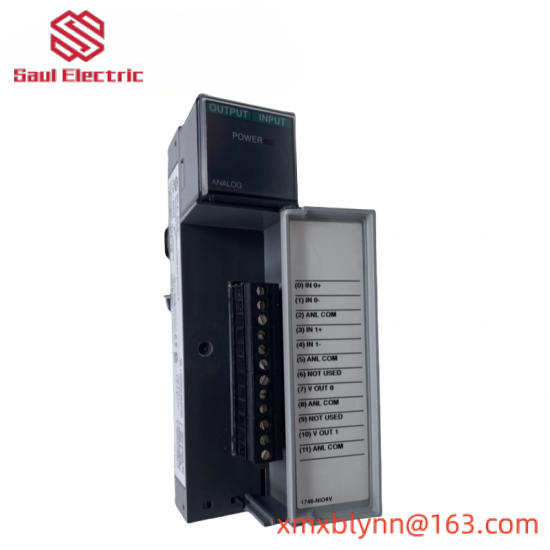

This Allen Bradley 1746-NIO4V module offers unparalleled accuracy in analog signal processing, making it an essential component for complex industrial automation systems.
With its robust design, the module is capable of handling a wide range of input voltages and currents, ensuring reliable performance in diverse operational environments.
The dual-input feature allows for simultaneous measurement of two different signals, providing flexibility in monitoring and controlling multiple parameters.
The high-resolution output capability ensures precise voltage control, critical for processes that require fine adjustments and sensitivity.
Built-in overvoltage protection safeguards against electrical spikes and surges, enhancing system reliability and reducing maintenance costs.
Its open-type enclosure facilitates easy installation and maintenance, while the status LED provides real-time feedback on module operation, enabling proactive monitoring and troubleshooting.
