Model Type:High-Resolution Analog Input/Output Module
Number of Channels:4 Input / 4 Output
Common Mode Voltage Range (Input):-20 to 20 V
Absolute Input Voltage (Input):+/- 7.5 VDC or +/- 7.5 VAC RMS (Max.)
Input Range (Current):-20 to 20 mA
Output Range (Voltage):0 to 20 mA
Voltage Rating:Overvoltage Protection: 7.5 VAC RMS
Isolation:Backplane: 500 VDC, Enclosure: Open Type
Backplane Current Draw:35 MA at 5 V, 85 MA at 24 V
Dimensions:Standard 6U DIN Rail Mount
Operating Temperature:-20°C to 70°C
Operating Humidity:0% to 95% non-condensing

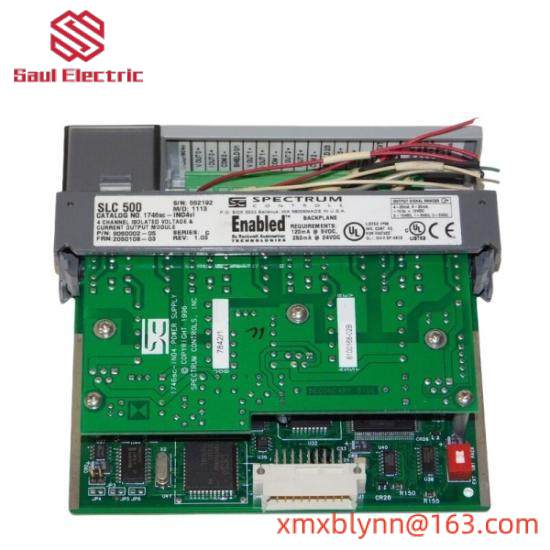

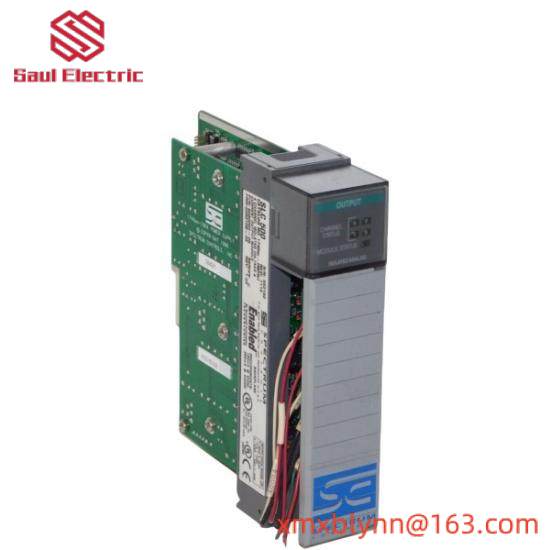

The Allen Bradley 1746SC-INO4VI is engineered for precision in industrial control systems, offering unparalleled reliability in data acquisition and output control.
This module supports up to four input and four output channels, enabling versatile integration into diverse industrial applications.
With its high-resolution input capabilities, it accurately captures and processes a wide range of signals, enhancing operational efficiency and accuracy.
The robust design ensures compatibility with various power supplies, ensuring stable operation under varying conditions.
Its open-type enclosure facilitates easy installation and maintenance, making it suitable for a broad spectrum of industrial environments.
Backplane isolation prevents interference, ensuring that the 1746SC-INO4VI maintains consistent performance even in noisy industrial settings.
