Model Type:Bridge Module
Manufacturer:Allen-Bradley
Model Number:1756-CNBD
Communication Protocol:ControlNet
Amperage Rating:Drawn: 970 MA at 5.1 VDC, 1.7 MA at 24 VDC
Isolation:30 V (Continuous)
Rfi Suppression:Radiated: 10 V/M with 1 KHZ sine-wave 80% AM from 80 – 2000 MHz
Temperature Rating:0 – 60 DEG C
Power Dissipation:5.1 W
Enclosure Type:Open Type
Connection Compatibility:Compliant shielded or unshielded twisted pair
Environmental Conditions:5 – 95% non-condensing relative humidity
Vibration Resistance:2 G
Shock Resistance:30 G

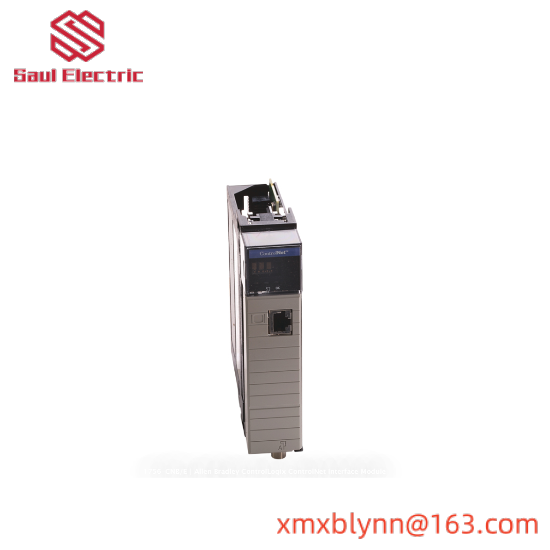

The Allen-Bradley 1756-CNBD ControlNet Bridge Module is designed to seamlessly integrate ControlLogix systems with ControlNet networks, ensuring enhanced data transfer speeds and reliability.
With its robust design, this module supports both drawn and 24 VDC current ratings, providing versatility in industrial applications.
Equipped with advanced RF suppression technology, the module ensures minimal interference, guaranteeing stable communication in harsh environments.
Operable within a wide temperature range of 0 to 60 degrees Celsius, this module is suitable for a variety of industrial settings, from cold warehouses to hot manufacturing floors.
Built with an open-type enclosure, it allows for easy installation and maintenance, making it a preferred choice for industrial automation projects requiring high efficiency and reliability.
