Model Type:CONTROLLOGIX
Model Number:1756-IT61
Manufacturer:Allen-Bradley
Isolated Temperature Inputs:6
Operating Voltage:DC 24V
Input Range:-50°C to 150°C
Accuracy:+/- 0.5% FS
Power Consumption:Less than 25mA
Connector Type:Terminal Block
Dimensions:4.75 x 5.5 x 1.3 inches
Weight:0.5 pounds
Environment Rating:IP20
Communication Protocol:ControlNet™

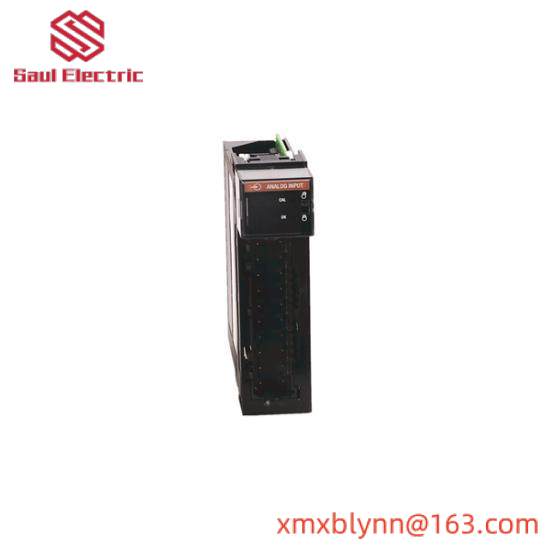

The Allen-Bradley 1756-IT61 CONTROLLOGIX module is specifically designed for applications requiring high accuracy and reliability in temperature measurement. It supports 6 electrical isolated input channels, ensuring protection against electrical noise and interference in harsh industrial environments.
Each channel is capable of measuring temperatures ranging from -55°C to +150°C, making it suitable for a wide variety of industrial processes including chemical plants, food and beverage manufacturing, and material handling systems.
Featuring a 250 Ohm input resistance, the module ensures minimal voltage drop across the sensor, enhancing the overall accuracy of the measurement. The low power consumption of 1.2 W ensures efficient operation without straining system resources.
With an operating voltage of DC 24 V, the 1756-IT61 module is compatible with a broad range of industrial power supplies, facilitating seamless integration into existing control systems. Its electrical isolation prevents common mode voltages from affecting the measurement results, further enhancing the reliability of the data acquired.
Designed for use within Allen-Bradley’s CONTROLLOGIX platform, this module benefits from seamless integration with other components of the system, allowing for comprehensive monitoring and control of thermal processes. The compact size and lightweight design of the module facilitate easy installation within various control cabinets and systems.
