Model Type:ControlLogix
Product ID:1756-OB16E
Allen Bradley Type Designation:Digital DC output Module
No. of Outputs:16
Output Voltage range:10-31.2 VDC
Nominal Output Voltage:24 VDC
Outputs:16-Point
Electronically Fused Voltage:12-24 Volts DC
Module Data Memory Mapping:Up to 5000, 16-bit registers
CIPconnect-enabled:Network configuration and diagnostics
Ethernet Configuration:Single-Slot ControlLogix backplane compatible
Compatibility:Backward-compatible with previous MVI56-MNETR versions
Auto Crossover Detection:10/100 Mbps
User Definable:Module data memory mapping
Image Size Optimization:Designed for remote rack implementations
Communication:EtherNet/IP pass-through communication
Configuration Software:ProSoft Configuration Builder (PCB)

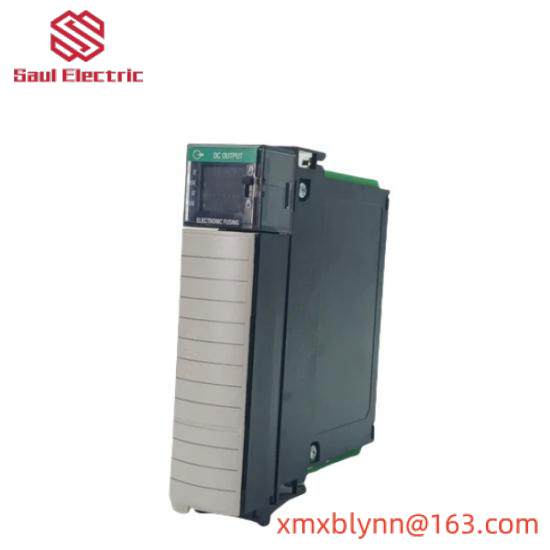

The Allen Bradley 1756-OB16E ControlLogix module is designed for seamless integration into complex industrial systems, ensuring reliable and efficient operation across various applications.
With its 16-point digital DC output capability, this module offers precise control over actuators, valves, and other critical components in manufacturing lines.
Featuring an open-type enclosure and optimized for remote rack installations, it delivers robust performance in diverse industrial environments.
Backward-compatible with previous versions, this module simplifies upgrade paths and enhances system flexibility.
Equipped with advanced Ethernet configuration capabilities, it supports fast and secure communication protocols, facilitating streamlined network management and diagnostics.
Built with industry-leading standards in mind, the Allen Bradley 1756-OB16E ensures long-term reliability and compatibility with future technologies.
