Module Type:Right End Cap
CompactLogix Compatibility:1769 series
Operating Altitude:Up to 2000 meters
Maximum Bus Current Draw:5 mA at 5 volts DC
Backplane Current:1.4 Amps at 24 Volts
Power Consumption:33.6 Watts
Weight:130 g (0.286 lb)

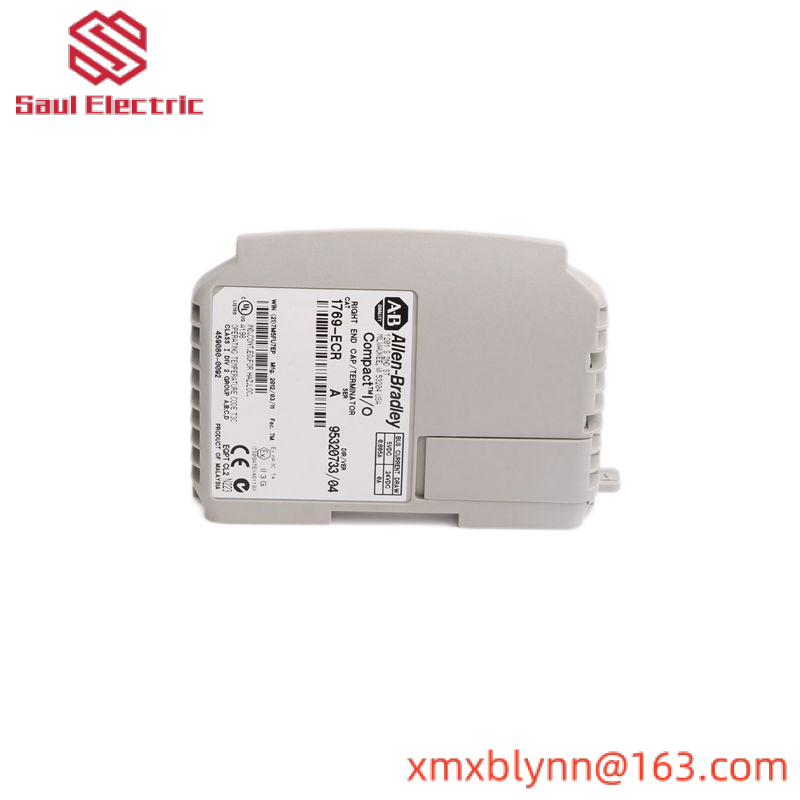

The Allen-Bradley 1769-ECR Right End Cap module is specifically engineered to enhance the efficiency of CompactLogix systems by providing a secure and reliable connection point at the assembly’s end.
This module is compatible with all CompactLogix and MicroLogix 1500 LRP Controllers, excluding certain models, ensuring compatibility across a wide range of industrial automation applications.
With its single slot design, the 1769-ECR is designed to be seamlessly integrated into existing systems, minimizing downtime and maximizing operational efficiency.
Utilizing ladder logic, the module facilitates smooth data transfer between the processor and module, optimizing the performance of your automation system.
Equipped with a current draw of 5 mA at 5.1 VDC, the 1769-ECR ensures efficient power consumption, contributing to the overall energy efficiency of your facility.
Featuring a lightweight design at 130 g (0.286 lb), the module is easy to install and maintain, making it a practical choice for various industrial environments.
