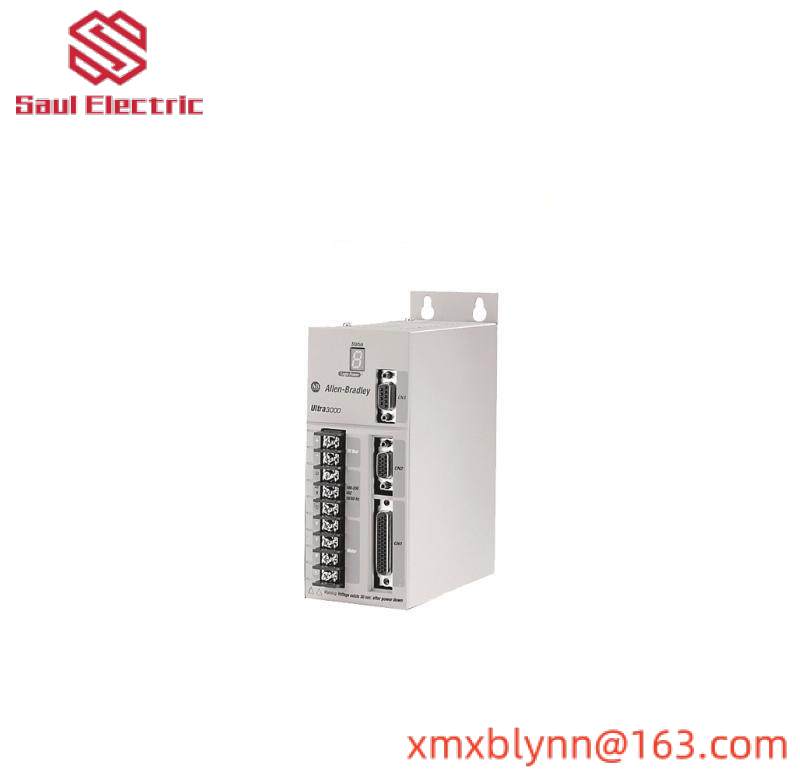

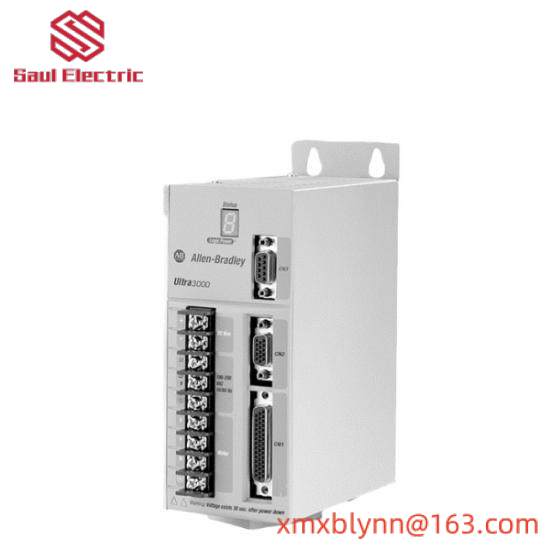

Allen-Bradley 2098-DSD-020X Ultra 3000 Digital Servo Drive

Current (AC):18 Amps RMS

Input Frequency (AC):47-63 Hz

Input Voltage (AC):120 – 240 VAC RMS, 1-Phase

Output Voltage:100-240VAC

Output Frequency Range:0-400 Hz

Continuous Output Power:1kW

Continuous Output Current:1A

Intermittent Output Current:30A (0-peak)

Dimensions:7.8 x 5.68 x 3.89 in (198.12 x 144.27 x 98.1 mm)

Weight:N/A

Operating Temperature:0-55 °C (32-131 °F)

Storage Temperature:-40-70 °C (-40-158 °F)

Relative Humidity:5-95% without condensation

Operating Shock:15 g (3 pulses, 11 ms)

Nonoperating Shock:30 g (3 pulses, 11 ms)

    The Allen-Bradley 2098-DSD-020X is a standard digital servo drive from the Ultra 3000 product family. Designed for precise motion and positioning control, this drive seamlessly interfaces with servo motors like Allen-Bradley’s Kinetix Servo Motor series. Its robust construction and advanced technology ensure reliable performance in demanding industrial environments. Key features include a wide input voltage range of 120 – 240VAC, making it adaptable to various power sources. With a compact size of 7.8 x 5.68 x 3.89 in, this drive occupies minimal space, ideal for installations where space is limited. The drive is engineered to handle continuous output power of up to 1kW, providing ample power for a wide range of applications. The drive also supports simple indexing or preconfigured drive motions, enhancing operational flexibility. Additionally, the 2098-DSD-020X offers a continuous output current of 1A and intermittent output current of 30A, ensuring consistent and reliable performance under varying loads.
