Product Type:Encoder Interface Module
Protocol:CANopen
Bus Type:CANopen to CiA DS 301
Current Consumption:320 mA / 5 VDC
Transfer Rate:10 k to 1 Mbaud
Number of Masters:4 per M1 controller
CAN Buses:2 per module
Max. Nodes Per Bus:64 per CAN bus
Operating Temperature:-30 to +60 °C
Voltage Range:+5 V and +15 V selectable with jumper, 24 V looped through
Output Voltage:±10 V
Output Current:Max. ±2 mA
Resolution:32 bit
Module Weight:0.66 KG

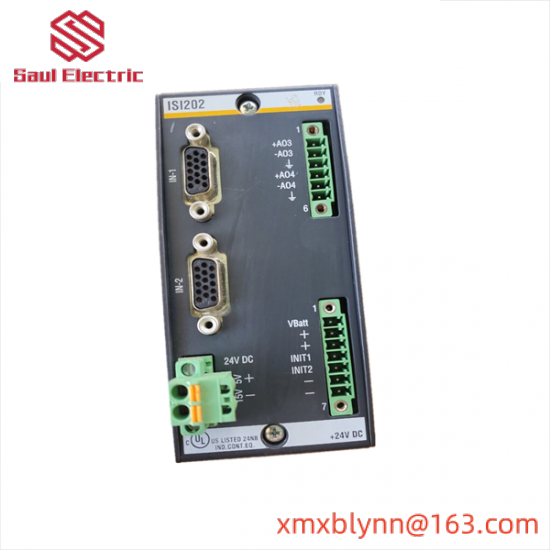

The Bachmann ISI202 Encoder Interface Module is engineered for high precision and reliability in industrial control systems. It ensures accurate and swift communication between encoders and automation controllers, crucial for applications requiring precise measurements and control.
This module supports various communication standards, including RS232, RS422, and RS485, with baud rates up to 1.5 MBaud, providing flexibility in system integration.
Featuring a 128-byte FIFO buffer, the ISI202 efficiently manages data flow, reducing the risk of data loss during transmission. Its single isolation feature enhances the module’s robustness against electrical noise and interference.
With an operating temperature range from -20°C to +60°C, this module is suitable for a wide variety of industrial environments, ensuring continuous performance under extreme conditions.
The low current consumption of ≤ 120 mA at 24 V DC makes it energy-efficient, ideal for power-sensitive systems. Its compact size and lightweight design facilitate easy installation and integration into existing setups.
