Operating Voltage Range:3.3V to 5.5V
Supply Current:Max 20mA
Input Impedance:10MΩ
Input Range:±10V
Temperature Range:-40°C to +85°C
Accuracy at 25°C:±0.05%
Resolution:14-bit
Power Consumption:Typically < 1mW
Communication Interface:SPI
Number of Channels:1

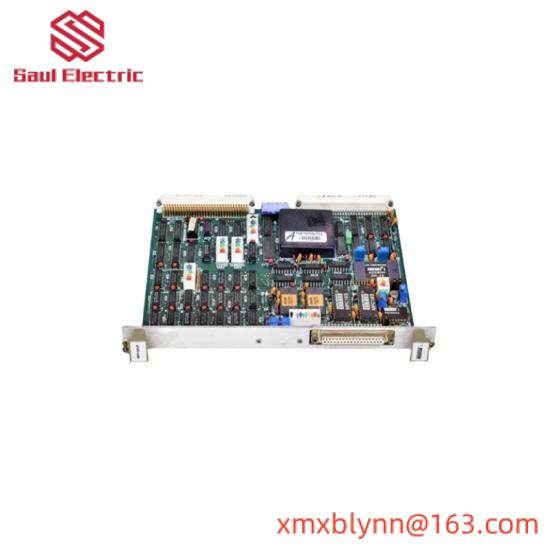

The BURR-BROWN MPV901 Analog Input Module is a key component in any industrial control system, engineered to provide exceptional precision and reliability. This module is equipped with a 12-bit Analog-to-Digital Converter (ADC), ensuring accurate and fast data conversion from analog signals to digital format.
Featuring a wide input range from -10V to +10V, it can seamlessly integrate with various industrial sensors, making it suitable for a broad spectrum of applications. With a sampling rate of up to 1M samples per second (Msps), the MPV901 ensures real-time monitoring and control without compromising on performance.
Designed for harsh industrial environments, this module operates efficiently within a temperature range of -40°C to +85°C. Its low power consumption of ≤ 20mW makes it energy-efficient, reducing operational costs and enhancing system longevity.
The module’s high-impedance input ensures minimal loading effects on connected sensors, preserving measurement accuracy. The inclusion of a 4-pin DIP connector facilitates easy installation and integration into existing systems.
For communication purposes, the BURR-BROWN MPV901 supports an RS-485 interface, enabling robust data transfer over long distances with high immunity to noise. This feature ensures reliable data exchange between the module and other components in the control system, contributing to overall system stability and performance.
