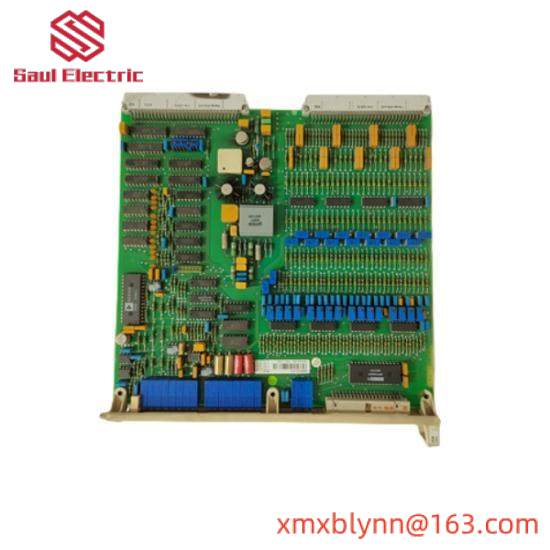

DSAI – ABB 3BSE003127R1 130D Analog Input Board

Brand:ABB

Model Number:3BSE003127R1

Subtype:130D

Analog Input Channels:8

Input Voltage Range:5-24V DC

Sampling Rate:Up to 10 kHz

Operating Temperature:-20°C to +85°C

Power Supply:DC 24V

Communication Interface:RS-485 Modbus RTU

Dimensions:144mm x 100mm x 44mm

Weight:0.25kg

    The ABB 3BSE003127R1 130D Analog Input Board is engineered to deliver unparalleled accuracy and reliability in industrial control applications. Its 16-channel design allows for simultaneous data acquisition from various sensors, providing real-time insights into operational processes.

    With a wide signal range of -10V to +10V, this board is versatile enough to accommodate a broad spectrum of sensor outputs. Its exceptional sampling rate of 100 kHz ensures that rapid changes in process variables are captured with precision, enhancing the responsiveness of automation systems.

    Featuring a robust 24 VDC power supply and an operating temperature range from -20°C to +60°C, the 3BSE003127R1 130D is built to withstand harsh industrial environments. This makes it ideal for use in manufacturing lines, process control systems, and any application requiring high reliability and durability.

    For enhanced functionality, the board includes four relay outputs, enabling it to interface with external devices such as alarms or actuators. These outputs can be configured for different modes, offering flexibility in system integration.

    To facilitate seamless communication with other industrial devices, the ABB 3BSE003127R1 130D is equipped with an RS-485 Modbus RTU interface. This standard protocol ensures compatibility with a wide range of industrial equipment, simplifying installation and maintenance processes.
