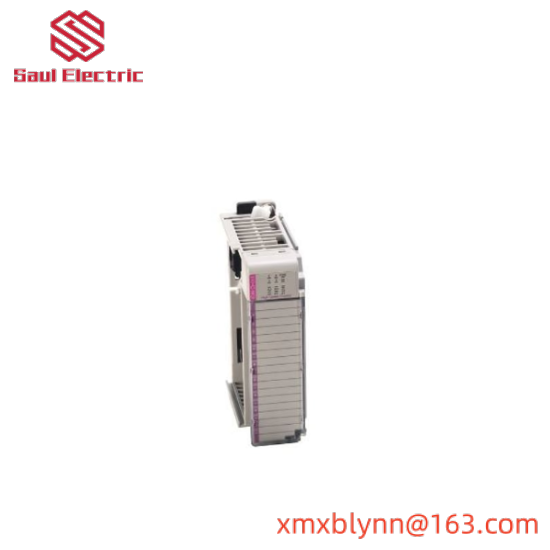

Module Type:CompactLogix Counter & Encoder
Model Number:1769-HSC
Interface Compatibility:Ethernet
Max Counters:10
Speed Calculation:Yes
Precision Measurement Range:Up to 16-bit resolution
Power Consumption:5W
Operating Temperature:-20°C to +60°C
Dimensions (WxHxD):90mm x 90mm x 51mm
Weight:0.1 kg
The 1769-HSC module from Rockwell Automation is engineered to meet the stringent requirements of motion control systems in various industrial sectors, including automotive, food processing, and manufacturing. Its compact design and robust performance make it an ideal choice for space-constrained environments where precision and reliability are paramount.
Featuring a modular architecture, the 1769-HSC Encoder & Counter Module integrates seamlessly with the CompactLogix PLC system, providing enhanced control capabilities. The module supports a wide range of communication protocols, enabling versatile integration with diverse automation networks.
Key features include high-resolution encoder signal processing, enabling accurate measurement of rotational speed, direction, and position. This capability is crucial for applications demanding precise feedback mechanisms, such as robotic arms or conveyor systems. Additionally, the timing function ensures reliable synchronization and coordination within complex machinery.
Designed for durability and reliability, the 1769-HSC module operates within a broad temperature range, ensuring consistent performance across different environments. Its low power consumption minimizes energy usage, contributing to cost-effective operation.
Installation and setup are straightforward thanks to user-friendly interfaces and comprehensive documentation provided by Rockwell Automation. The module’s compatibility with industry-standard protocols simplifies integration into existing automation infrastructures, streamlining the transition to advanced control systems.
