Model Number:469-P5-HI-A20-E
Brand:GE Multilin
Voltage Range:90 – 300 Volt DC, 70 – 265 Volt AC
Current Rating:4 Analog Output, Enhanced Front Panel CURRENT: 390/500 MA (MAX)
CT Rating:5 CT Secondaries
Frequency Range:48-62 Hz
Phase CT:5A
Overvoltage Category:II
Insulation Voltage:300 V
Pollution Degree:2
Analog Outputs:4 (0 to 1 mA)
Digital Inputs:9 opto-isolated inputs
Display:Enhanced display, larger LCD
Operating Temperature:-40°C to +60°C
Storage Temperature:-40°C to +80°C
Enclosure Rating:20-X
Software:EnerVista 469 Setup

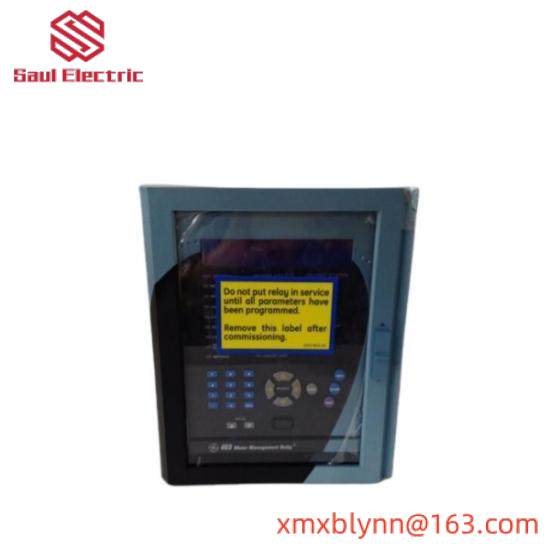

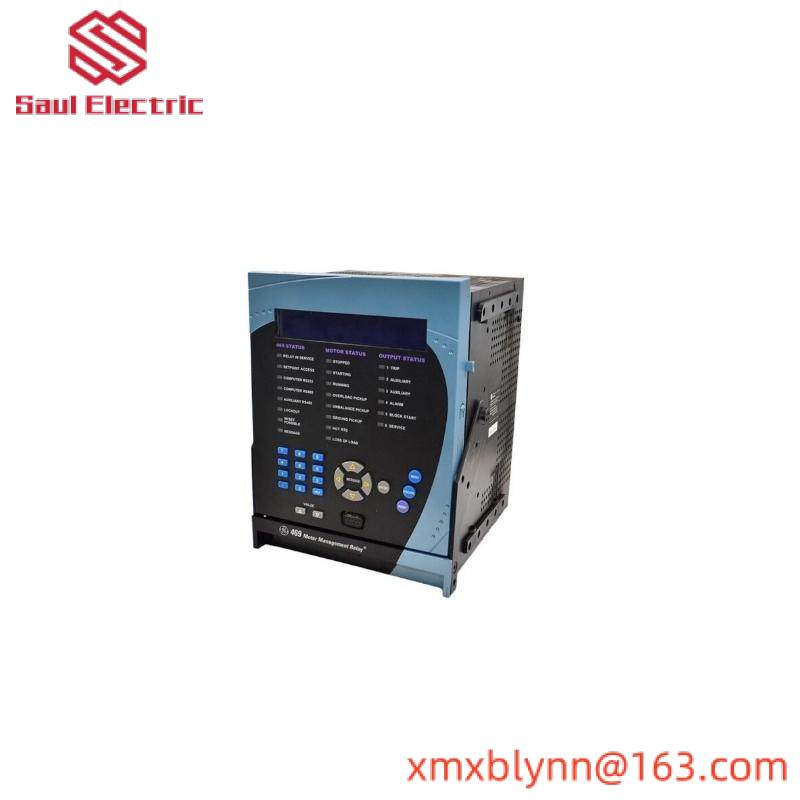

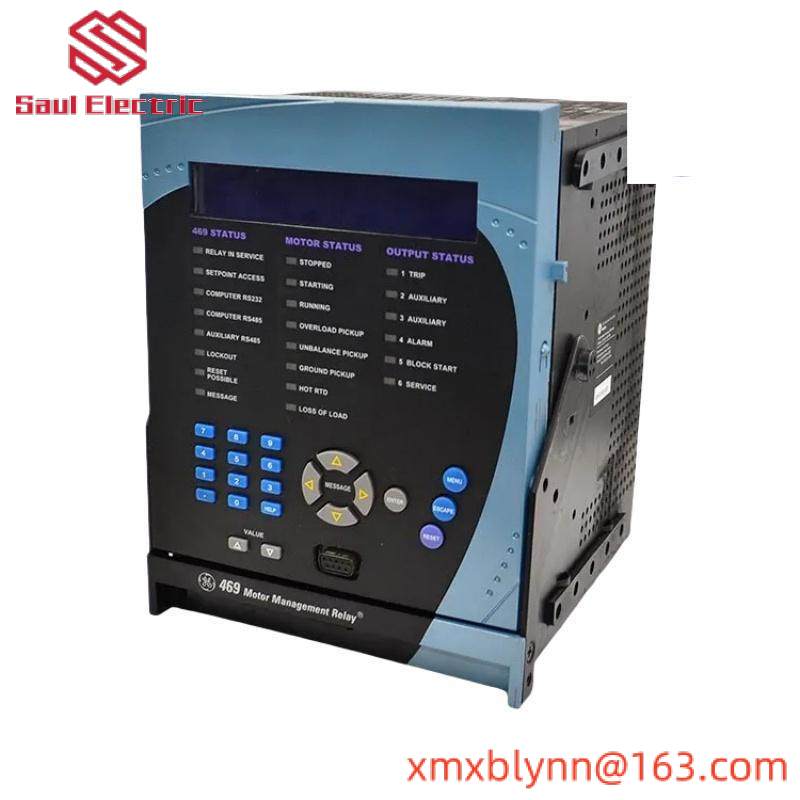

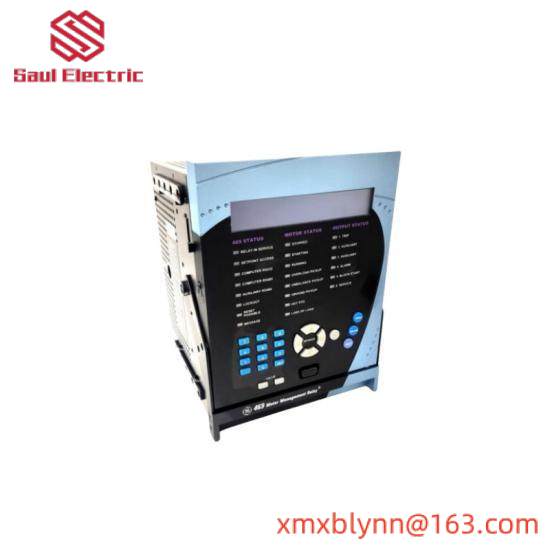

The GE 469-P5-HI-A20-E is a state-of-the-art Motor Management Relay that ensures optimal performance and safety for industrial motors. It integrates multiple RTD inputs, allowing it to monitor and report on the actual temperature and hottest point of the motor system. With three-wire RTDs composed of 100 ohm Nickel, 120 ohm Nickel, 10 ohm Copper, and 100 ohm Platinum, this relay provides precise temperature management. The device supports a wide input voltage range, making it adaptable to various industrial settings. Additionally, it features four analog outputs and nine opto-isolated digital inputs, providing versatile connectivity options. Designed for harsh chemical environments, the unit comes with conformal coating for added durability. The 469-P5-HI-A20-E operates within a broad temperature range (-40°C to +60°C) and offers a larger LCD display for improved visibility and ease of use.
