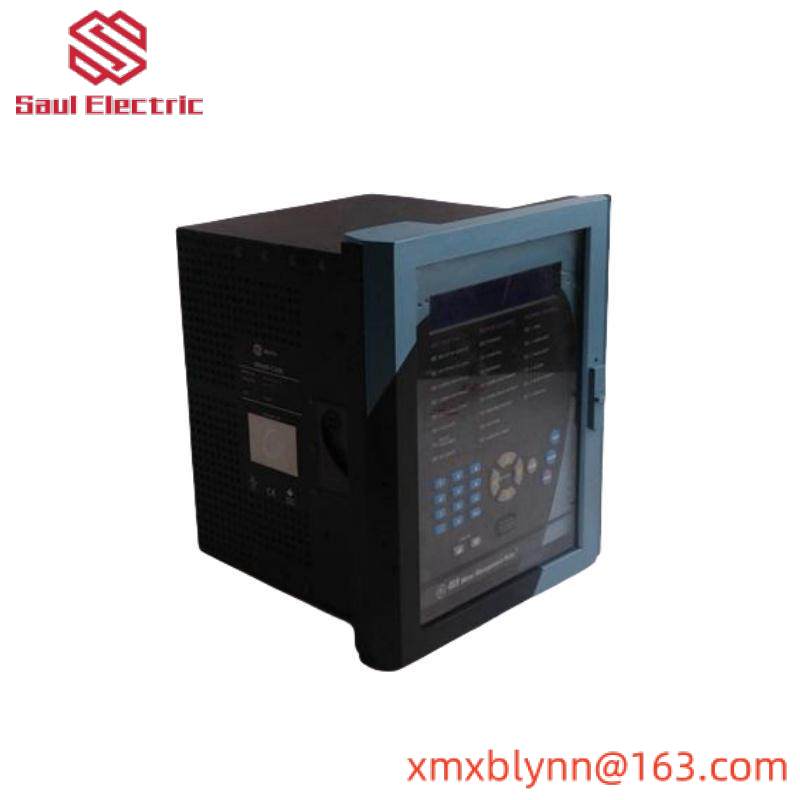

GE 750-P5-G5-S5-HI-AI-R-E: Advanced Feeder Management Relay for Industrial Control Systems

Product Type:Communication Module

Weight:0.14 kg

Analog Outputs Type:Active

Communications Protocol:Modbus RTU or DNP 3.0

Red Breaker Closed LED:Yes

Frequency Range:25 to 60 Hz nominal

Insulation Voltage:300 V

Overvoltage Pickup Level:0 to 1.25 × VT in steps of 0.01

Waveform Capture Channels:4 currents, 3 voltages, 14 logic input states, and 8 output relays

RS232 Port:For single relay monitoring

RS422 Port:Effective for monitoring multiple relays

RS485 Port:For connection to EnerVista 750 software program

Ethernet Port:Optional for network connectivity

    Engineered with cutting-edge technology, the GE 750-P5-G5-S5-HI-AI-R-E Feeder Management Relay offers unparalleled control and protection capabilities for distribution feeders, catering to the needs of medium to large-scale industrial operations.

    This state-of-the-art relay seamlessly integrates with GE Multilin’s EnerVista 750 software program, providing users with an intuitive interface for setting parameters, analyzing data trends, and exporting information efficiently.

    Featuring a versatile communication module, the relay supports both Modbus RTU and DNP 3.0 protocols, ensuring seamless connectivity with a wide range of systems and devices within the industrial ecosystem.

    Equipped with 4 current capture channels, 3 voltage channels, 14 logic input states, and 8 output relays, the GE 750-P5-G5-S5-HI-AI-R-E delivers comprehensive monitoring and control solutions for feeder management.

    Designed for ease of use, the relay boasts a compact and durable construction, capable of being installed on a standard 19-inch panel either alone or in conjunction with other 750 series units, enhancing system scalability and flexibility.
