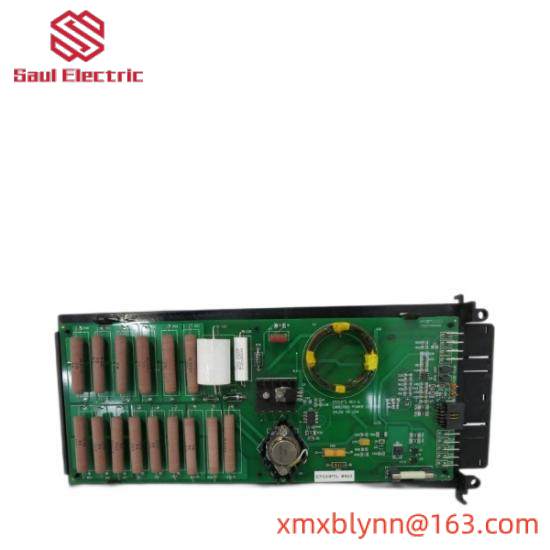

GE DS3800HPTK GATE DRIVER CARD: General Electric’s Advanced Control Module for Mark IV Systems, Precision Engineering for Industrial Efficiency

Manufacturing Company:General Electric

Model Number:DS3800HPTK

Application Category:Mark IV DS3800

Functionality:Gate driver for the Mark IV Speedtronic series, providing precise control over turbine operations

Component Count:Fifteen long grey resistors rated at 18 Ohms ±5%, ten color-coded resistors indicating their capacity, thirteen diodes of various colors, three capacitors of varying sizes, a large glass fuse, and a small red LED

Physical Design:Comprises a thin metal divider with eight contact points, labeled from A through H and then J with triangular symbols between each letter, and equipped with two screw points and two plastic clips for easy installation

Manufacturing Information:Labeled with circuit board number, manufacturer’s logo (GE), and manufacturing location

    The GE DS3800HPTK Gate Driver Card is a precision-engineered solution for enhancing turbine control systems, ensuring reliable operation in demanding industrial environments.

    Featuring a robust set of components including resistors, diodes, capacitors, and an LED indicator, this card provides unparalleled performance for turbine control.

    Its compact yet sturdy design facilitates easy installation, requiring only two screw points and two plastic clips for a secure fit.

    Each part of the DS3800HPTK is meticulously labeled with a letter-number system, making identification and replacement straightforward.

    Manufactured by General Electric, this product embodies the company’s commitment to quality and reliability, backed by extensive experience in industrial automation.
