Board Model:IS200WEORG1ACD
Manufacturer:General Electric (GE)
Series:Mark VIe
Application Type:Turbine Control System
Dimensions (WxDxH):11 x 6 x 6.7 cm
Weight:0.14 kg
Operating Temperature Range:-20°C to +55°C
Operating Voltage:DC 24V
Current Consumption:Max 1 A
Number of Inputs/Outputs:16/16
Communication Interface:RS-485

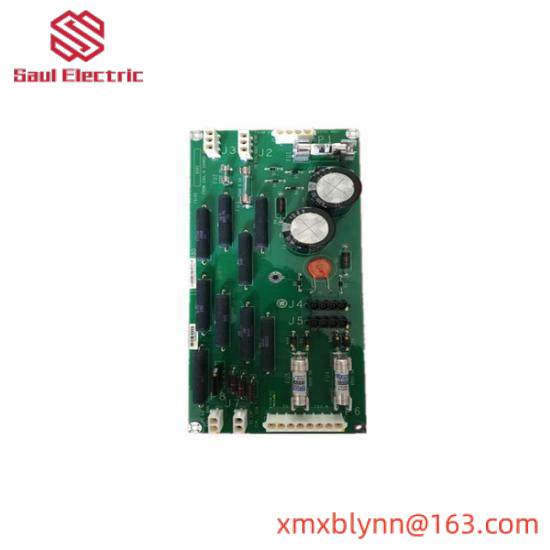

The GE-FANUC IS200WEORG1ACD circuit board is developed by GE Energy, specifically for the Mark VIe Turbine Control System Series, ensuring compatibility and integration with the existing system architecture.
This PCB features a robust design with a combination of capacitors, resistors, and fuses that provide stability and protection against voltage spikes, enhancing system reliability.
Each fuse is labeled with a unique reference designator (FU1, FU4, and FU5), allowing for quick identification and replacement in case of failure, thus minimizing downtime and maintenance costs.
The inclusion of factory-drilled and insulated installation holes ensures safe and secure mounting, facilitating easy assembly and disassembly processes without compromising electrical integrity.
The board supports various industrial standards, including field bus communication protocols, enabling seamless data exchange and control over different system components.
