Model Number:DS200TCPDG1ADC
Hardware Components:[“8 Toggle Switches”,”36 Fuses”,”4 Signal Wire Terminals”,”36 OK LEDs”,”1 10-Pin Connector”]
Diagnostic Features:[“Quick LED indication for fuse status”,”Blown fuse detection via lit LEDs”]
Board Dimensions:Specific dimensions to be provided
Surface Coating:Standard surface coating for durability and resistance
Assembly Group:Group One of the Mark V Series
Functional Revisions:[“B-rated primary revision”,”E-rated secondary revision”,”C-rated artwork configuration revision”]

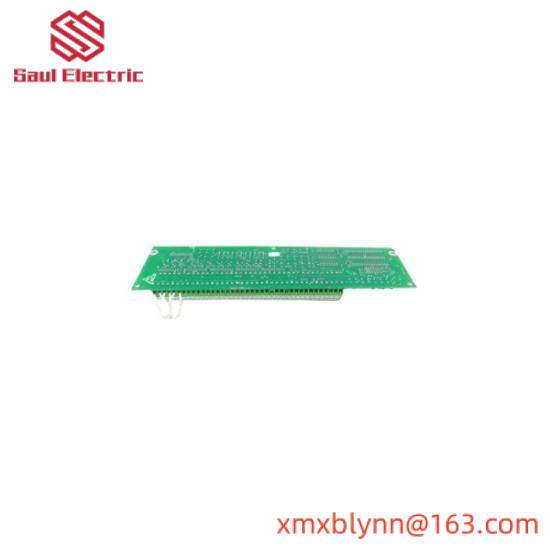

The General Electric DS200TCPDG1ADC is engineered with high-quality materials to withstand harsh industrial environments, ensuring longevity and reliability. It features a compact design for efficient space utilization within control panels.
This power distribution module is compatible with a wide range of GE drives and exciters, providing a versatile solution for various industrial applications. Its modular design allows for easy installation and maintenance, reducing downtime.
Equipped with 36 fast-acting fuses, the DS200TCPDG1ADC ensures rapid protection against overcurrent and short-circuit events, safeguarding connected equipment and systems. The integrated LED indicators provide a clear visual status of each fuse, enabling quick identification of potential issues.
The DS200TCPDG1ADC comes with a 10-pin connector that facilitates seamless integration with other system components, enhancing connectivity and data transfer efficiency. Additionally, the inclusion of 4 signal wire terminals allows for precise control and monitoring of system operations.
Designed with user-friendliness in mind, the DS200TCPDG1ADC features 8 toggle switches for manual control, enabling operators to easily manage power distribution without the need for complex adjustments. This feature ensures operational flexibility and ease of use.
