Brand:HARTING
Model:09380182601
Type:Rectangular Han Insert
Connection Type:Plug
Connection Points:18-way
Transmission Type:Data and Power
Environment Resistance:Industrial grade
Material:High-grade plastic and metal contacts
Operating Temperature Range:-40°C to +85°C
Voltage Rating:Up to 250V AC
Current Rating:Up to 10A
Color:Standard black
Mounting Style:Panel mounting
Dimensions:W x H x D: 50mm x 32mm x 10mm
Weight:Approximately 10g
Certifications:CE, UL, RoHS compliant

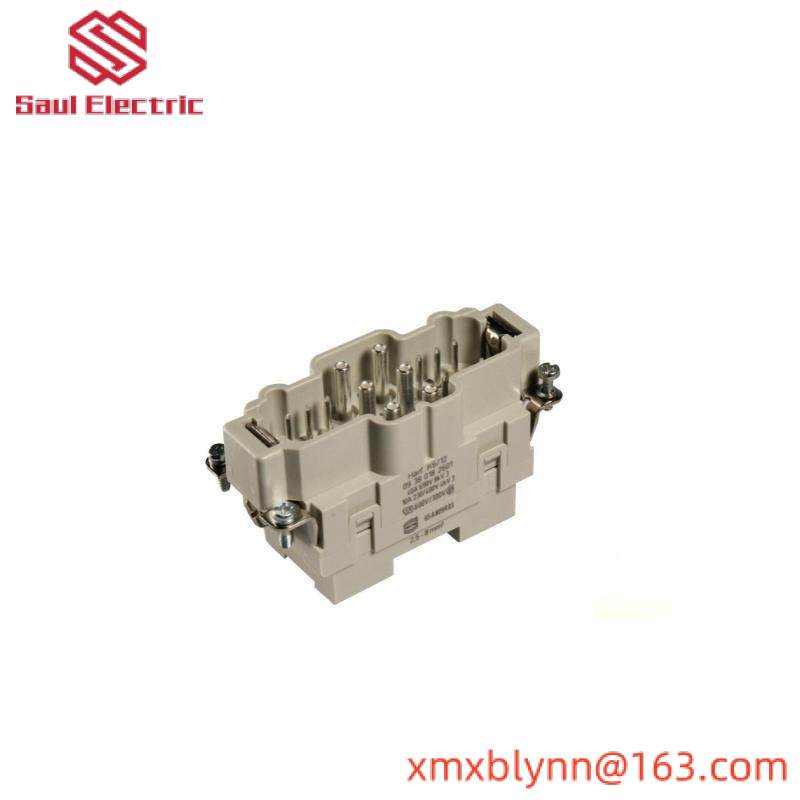

The HARTING 09380182601 Rectangular HAN Insert, designed for 18-way screw connections, is a cornerstone component in modern industrial automation systems. Its robust construction ensures longevity and reliability, even under extreme environmental conditions.
Crafted from premium-grade brass alloy, this insert offers exceptional durability and resistance against wear and corrosion, making it suitable for harsh industrial settings. The screw-locking mechanism provides a secure and stable connection, preventing accidental disconnection or damage during high-vibration operations.
With a contact rating of 2000 mating cycles, this insert is engineered to withstand frequent usage without compromising performance. It is rated to operate within a temperature range of -40°C to +85°C, ensuring consistent functionality across various climate conditions.
Featuring an impressive voltage capacity of up to 400V AC/DC and a current capacity of 25A, this HAN insert is capable of handling high-power applications efficiently. Its insulation resistance of ≥1000MΩ at 500V DC ensures reliable electrical isolation, while the dielectric strength of 500V AC for one minute without breakdown guarantees robust electrical safety.
Ideal for applications requiring robust and reliable data transfer and power supply, the HARTING 09380182601 is compatible with a wide range of industrial interfaces and protocols, facilitating seamless integration into complex control systems. Its compact size and modular design allow for easy installation and maintenance, enhancing operational efficiency.
