Model Type:Analog I/O Module
Manufacturer:Invensys Triconex
Model Number:3700/3700A
Voltage:0-5V, + 6%
Type:TMR
AI Input Points:32, differential, DC coupled
Isolated Points:No
Input Update Rate:55 ms
Resolution:12 bits
Accuracy:< .15% of FSR, from 0° to 60°C
Input Resistance (load):30 MΩ (DC), min.
Power-Off Resistance:30 KΩ (DC), typical
Common Mode Rejection:-80 dB (DC-100Hz), typical
Common Mode Range:-12V to +12V peak
Leg-to-Leg Isolation:200 KΩ, typical
Normal Mode Rejection @ 8Hz:-3 dB @ 60Hz
Normal Mode Rejection @ 120Hz:-23 dB

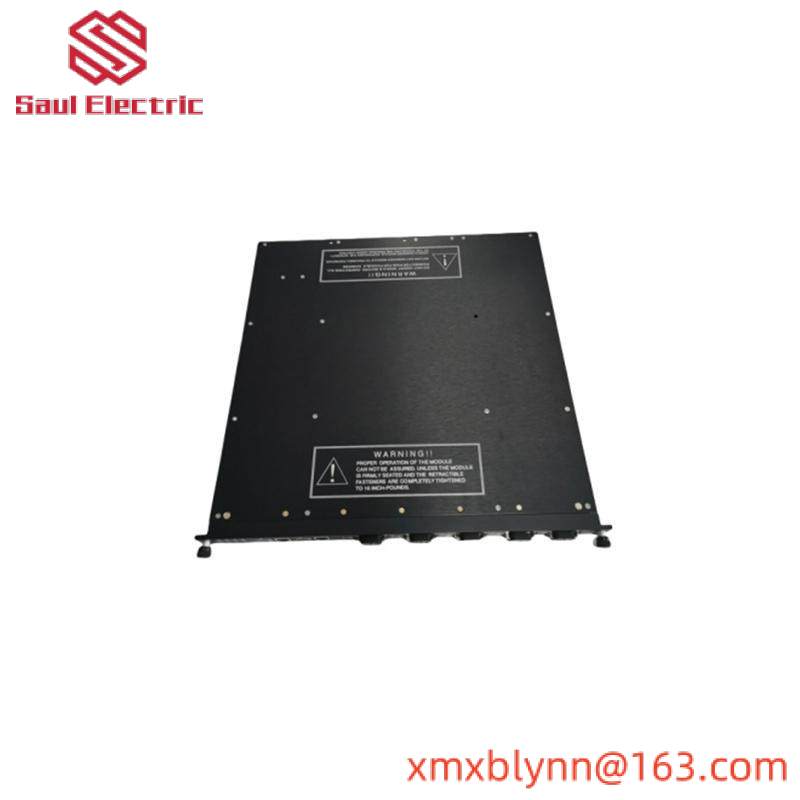

The Invensys Triconex 3700A Analog Input Module is engineered for industries requiring high-precision, robust, and reliable data acquisition solutions. Its advanced design integrates seamlessly into existing industrial networks, enhancing operational efficiency and safety.
Equipped with 32 differential input points, this module ensures accurate and stable readings under various environmental conditions. The DC coupled system minimizes interference, providing unparalleled signal integrity.
Featuring a 12-bit resolution and a low update rate of 55 milliseconds, the module delivers precise data acquisition even in high-speed processes. The exceptional accuracy and wide operating temperature range (-12V to +12V peak) guarantee consistent performance across diverse applications.
Designed with isolation and common mode rejection capabilities, the 3700A module safeguards against electrical noise and ensures reliable data transmission. Its power-off resistance and leg-to-leg isolation measures contribute to enhanced durability and system stability.
The Invensys Triconex 3700A Analog Input Module is ideal for industries demanding precision, reliability, and flexibility in their process control systems. Its comprehensive feature set makes it a preferred choice for modern industrial automation, enabling efficient monitoring and control of critical processes.
