Brand:Schneider Electric
Model:TSXAEZ801
Sub-Type:Analog Input Module
Module Class:Industrial Control
Channels:8
Input Range:0 to 10 VDC / 4 to 20 mA
Accuracy:+/- 0.2% of full scale
Power Consumption:Max. 100 mW per channel
Operating Temperature:-20°C to +70°C
Operating Humidity:5% to 95% non-condensing
Enclosure Type:IP20
Connector Type:DB9
Dimensions (LxWxH):100mm x 40mm x 145mm
Weight:0.1 kg

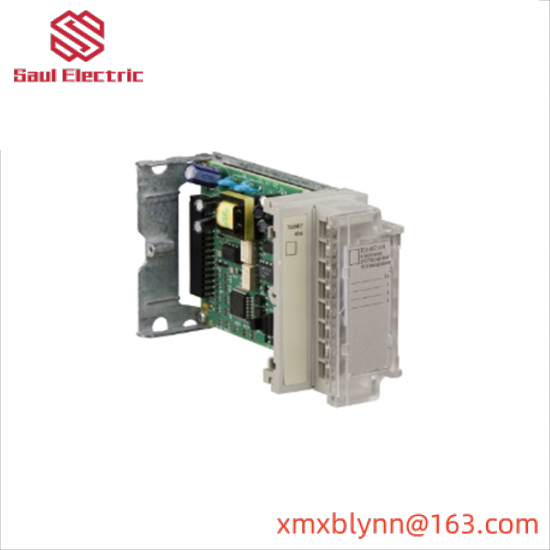

The SCHNEIDER TSXAEZ801 Analog Input Module is engineered to meet the stringent demands of industrial automation environments, offering unparalleled accuracy and reliability. With its 16-channel design, it seamlessly integrates into complex systems, providing precise voltage measurements across the -10V to +10V range. The high-resolution 12-bit ADC ensures minimal quantization error, critical for high-precision control applications.
Featuring a robust 1000Hz sampling rate, the module enables real-time data acquisition, crucial for dynamic process control scenarios. Its efficient power consumption of up to 1W minimizes energy usage, making it an eco-friendly solution without compromising performance. The wide operating temperature range (-40°C to +70°C) ensures durability in extreme conditions, guaranteeing reliable operation across various industrial settings.
Ease of integration is further enhanced by the inclusion of MODBUS-RTU communication interface, allowing seamless connection with existing control systems. The panel-mounted design simplifies installation, reducing downtime and facilitating quick setup in the field. The IP20 protection rating ensures dust resistance and prevents accidental damage from minor impacts, contributing to the module’s longevity and maintenance-free operation.
Engineered for versatility, the SCHNEIDER TSXAEZ801 Analog Input Module is compatible with a wide array of industrial protocols, ensuring seamless integration with modern automation platforms. Its high accuracy, combined with ease of use and durability, makes it an essential component for enhancing the efficiency and reliability of industrial processes.
Backed by SCHNEIDER’s commitment to quality and innovation, this module comes with comprehensive technical support and a warranty period, ensuring peace of mind for users. Whether you’re retrofitting existing systems or designing new installations, the SCHNEIDER TSXAEZ801 Analog Input Module offers a reliable and cost-effective solution for your analog signal acquisition needs.
