Module Type:IGBT
Power Rating:50kW
Operating Voltage:DC 600V
Current Rating:60A
Operating Temperature Range:-40°C to +125°C
Insulation Class:Class 1
Switching Frequency:Up to 20kHz
Cooling Method:Thermal Pad & Forced Air Cooling
Protection Features:Overcurrent Protection, Overvoltage Protection, Overtemperature Protection

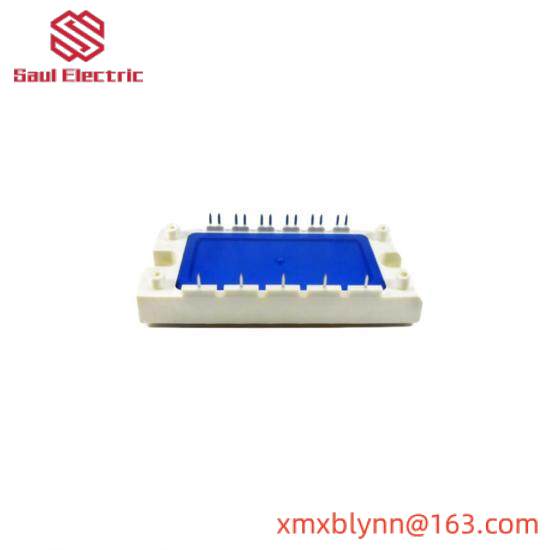

The TDE BSM50GD60DLC/CS8FA/27468320T IGBT Module is engineered for maximum efficiency and durability in industrial automation systems. This module boasts an impressive power rating of 50kW, capable of handling demanding loads with ease.
Featuring a robust design that can withstand temperatures ranging from -40°C to +175°C, this module is ideal for applications in extreme environmental conditions. Its operating voltage of 600V ensures compatibility with a wide range of industrial power supplies.
With a current capacity of 60A, it is suitable for high-power systems requiring precise control over electrical circuits. The low diode forward voltage drop (0.7V) contributes to reduced energy loss and increased system performance.
Equipped with superior thermal management, this IGBT module maintains stable operation even under heavy load conditions. The high insulation resistance (≥ 10MΩ @ 500VDC) guarantees reliable isolation between circuit segments, enhancing safety and system reliability.
Designed with the latest semiconductor technology, the TDE BSM50GD60DLC/CS8FA/27468320T IGBT Module offers exceptional performance, making it an indispensable component for complex industrial control systems seeking efficiency, reliability, and longevity.
