Model Type:Digital Output Module
Manufacturer:Triconex
Model Number:3401
Output Voltage:200 V
Output Frequency:44 kHz
Certified Product:3401 DO3401
Series:3401 DO3401
Operating Voltage Range:15 to 30 VDC
Absolute Maximum Output Voltage:33 VDC
Absolute Maximum Reverse Input Voltage:- 0.6 VDC
Switching Current (Self-Limiting):<4.8 A
Switching Current (Typical):3.0 A
Degraded Mode Current (Self-Limiting):> 0.7 A
Degraded Mode Current (Typical):1.5 A
Field Alarms:[“Loss of Field Power”,”Output Point Shorted”]
Loop-back Thresholds:[{“Range”:”0–5 VDC”,”State”:”Off”},{“Range”:”6–14 VDC”,”State”:”Transition”},{“Range”:”15–30 VDC”,”State”:”On”}]
Leakage to Load (Off):Measured

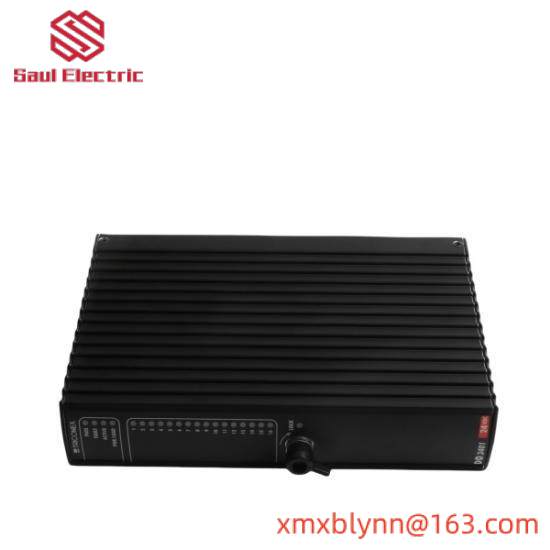

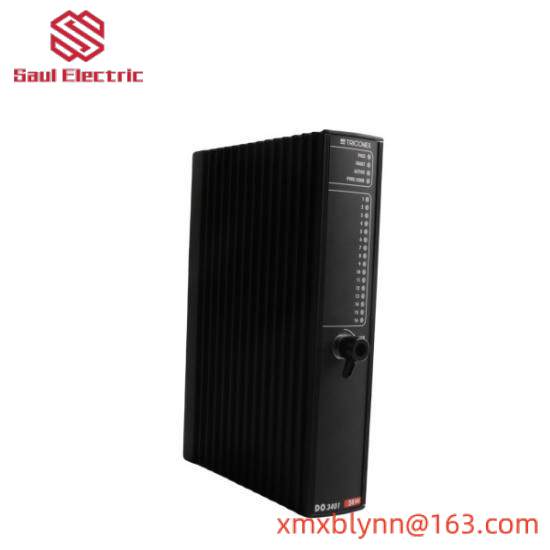

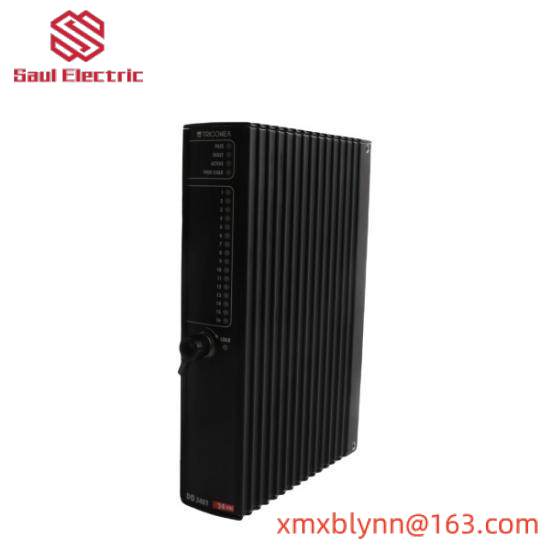

The Triconex 3401 Digital Output Module boasts an advanced design that ensures exceptional reliability and accuracy in control systems. It is equipped with eight independent digital output channels, each capable of delivering up to 5 Amperes, providing robust control over actuators and devices in industrial processes.
Featuring an ultra-fast response time of less than 1 millisecond, this module ensures immediate reaction to system commands, enhancing operational efficiency and responsiveness. Its wide operating temperature range from -40°C to +70°C makes it suitable for extreme environmental conditions found in many industrial settings.
With an internal power supply, the Triconex 3401 Digital Output Module is self-contained, simplifying installation and reducing the need for external components. This streamlined design not only minimizes installation costs but also reduces the risk of errors during setup.
Equipped with Modbus RTU communication interface, this module facilitates seamless integration with a variety of industrial automation systems, enabling easy data exchange and control management. This compatibility enhances its versatility and adaptability across different automation platforms.
Certified by UL, CE, CSA, and TUV, the Triconex 3401 Digital Output Module meets stringent international safety and performance standards. This certification ensures that users can trust the module’s reliability and performance in critical control applications, contributing to overall system safety and compliance.
